Burrs are a common problem in CNC metal machining. After milling, turning, drilling, or cutting, small protrusions, rough edges, or excess metal may remain around the edges of a machined part. Although burrs may seem like a minor issue, they can affect assembly, dimensional accuracy, surface quality, and even the safety of the finished product if they are not properly removed.
Understanding why burrs form and choosing the right deburring method can help manufacturers improve machining quality and reduce rework.
Get 20% offf
Your First Order
Need custom metal and plastic parts?
What Are Burrs in Metal Machining?
Where Do Burrs Usually Appear?
Burrs commonly appear along cutting edges, around holes, inside slots, and near sharp corners. During machining, metal does not always separate cleanly along the intended cutting line. Instead, some of the material may undergo plastic deformation and be pushed toward the edge, creating a burr.
Burrs are particularly common around the exit side of drilled holes and along part edges during milling and turning operations.
What Problems Can Burrs Cause?
Burrs affect more than just the appearance of a metal part. For example, parts with sharp burrs can cause injuries to operators or interfere with the assembly of mating components.
For precision mechanical parts, loose burrs can also enter moving mechanisms or hydraulic systems, potentially causing sticking, wear, or equipment failure. As a result, deburring is an important step in many CNC machining projects with strict quality requirements.
Why Do Machined Metal Parts Develop Burrs?
Worn Cutting Tools Can Reduce Machining Quality
Cutting tools play an important role in CNC machining quality. As a tool is used over time, its cutting edge gradually becomes worn and less sharp.
A worn tool cannot cut the material as cleanly and may instead cause more compression and plastic deformation, resulting in larger burrs. Regular tool inspection and replacement are particularly important in high-volume production.
Improper Cutting Parameters
Cutting speed, feed rate, and depth of cut can all affect burr formation. If the feed rate is too high, the cutting tool may not remove material smoothly, increasing deformation around the edges.
On the other hand, machining parameters that do not match the material can also lead to unstable cutting. Parameters should therefore be adjusted according to the characteristics of materials such as aluminum, steel, stainless steel, and copper.

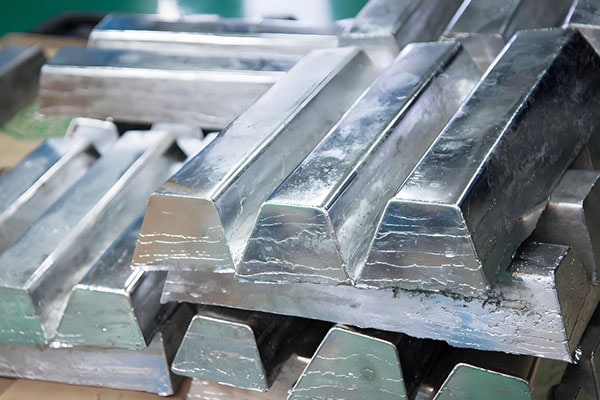

Material Ductility
Different metals have different machining characteristics. Materials with higher ductility can undergo more plastic deformation under cutting forces, making them more likely to produce burrs under certain conditions.
For example, aluminum alloys and low-carbon steels may develop noticeable edge burrs during certain machining operations. Using appropriate tools and cutting parameters can help reduce this problem.
Improper Toolpaths and Cutting Direction
Tool movement can also affect the location and size of burrs. When a cutting tool exits the edge of a workpiece, the material may experience greater deformation, resulting in a larger exit burr.
Optimizing the toolpath, changing the cutting direction, or adjusting the machining sequence can help reduce burr formation.
Common Deburring Methods for Metal Parts
Manual Deburring
Manual deburring is a traditional method that uses tools such as files, scrapers, and abrasive paper to remove burrs from part edges.
It is relatively inexpensive and suitable for prototypes, small production runs, and simple parts. However, for high-volume production, manual deburring may have limitations in terms of efficiency and consistency.
Mechanical Deburring
Mechanical deburring methods include brushing, tumbling, and vibratory finishing. These processes can handle multiple parts at once.
For batch production, mechanical deburring can improve efficiency and reduce manual labor. However, precision components require careful control of the process to prevent unwanted changes to dimensions or surface quality.
Reducing Burrs During CNC Machining
Instead of relying entirely on post-machining deburring, burr formation can also be reduced during the CNC machining process.
Using sharp tools that are appropriate for the material, optimizing cutting parameters, designing suitable toolpaths, and controlling feed rates can all help minimize burr formation.
Chamfering
For some metal parts, chamfering can be incorporated into the design to improve edge quality. A chamfer removes sharp edges and can also reduce the risk of scratches or interference during assembly.
However, chamfer dimensions should be determined according to the functional requirements and engineering drawings rather than removing excessive material simply to eliminate burrs.
How Can CNC Metal Machining Burrs Be Reduced?
Start With the Right Materials and Cutting Tools
Selecting cutting tools that match the material and keeping them sharp are important steps in burr control. Different metals may require different tool materials, cutting-edge geometries, and machining parameters.
Perform Quality Checks During Machining
For batch production, the condition of part edges and hole openings should be inspected regularly. If burrs gradually become larger, it may indicate tool wear or the need to adjust machining parameters.
Identifying these problems early can prevent a large number of completed parts from requiring rework.
Burrs on machined metal parts are usually related to factors such as tool wear, cutting parameters, material properties, toolpaths, and cutting direction. Although burrs may be small, they can affect part assembly, accuracy, operator safety, and service life.
Therefore, CNC metal machining should focus not only on post-machining deburring but also on preventing burr formation through proper tool selection, machining parameters, and part design. With an appropriate machining process and regular quality inspection, manufacturers can effectively reduce burrs and improve the overall quality of machined metal parts.
