How to Check the Accuracy of CNC Milling Equipment?

When many customers choose CNC milling services, what they care about most is often not how advanced the machine model is, but whether the parts can consistently meet drawing requirements over the long term. Once equipment accuracy is not stable enough, the first article may still pass barely, but during batch production, problems such as dimensional deviation, assembly difficulty, and increased rework are likely to occur. Truly effective accuracy inspection should not rely on a single parameter alone. Instead, it should combine equipment condition, inspection tools, trial machining results, and batch consistency for a comprehensive judgment, so that the actual machining capability can be evaluated more accurately.

Get Free Quote

First Confirm Whether the Equipment’s “Basic Accuracy” Meets the Standard

Before formal inspection, it is usually easier to judge whether the machine tool has the foundation for stable machining by starting with its basic condition.

Check Positioning Accuracy and Repeat Positioning Accuracy

Positioning accuracy determines whether the machine tool can reach the specified coordinate precisely, while repeat positioning accuracy reflects whether it can return to the same point consistently each time.

  • If the repeat positioning error is large, part dimensions are likely to fluctuate, and this difference becomes even more obvious during batch production.
  • For hole positions, slot positions, and assembly surfaces, these two indicators are often more critical than machining speed alone, because they are directly related to the assembly reliability of the part.
  • During inspection, it is not enough to rely only on the nominal data in the equipment manual; actual operating conditions must also be verified.

Positioning accuracy and repeat positioning accuracy are the first threshold for determining whether CNC milling equipment has stable machining capability.

Check Spindle Runout and Guideway Condition

Spindle runout directly affects the cutting path of the tool, while the condition of the guideways and ball screws determines whether the machine runs smoothly.

  • When spindle runout is too large, surface roughness, hole diameter accuracy, and contour consistency will all be significantly affected.
  • Wear on the guideways or abnormal backlash in the ball screws often causes machining errors to gradually increase after long-term operation, and such problems are more likely to appear during continuous production.
  • Whether the equipment is maintained on schedule also directly affects whether the inspection results are reliable, because a machine in poor condition can hardly reflect normal machining performance.

The stability of the spindle and guideways often determines whether the equipment can continuously deliver high-precision results.

Pay Attention to Stability After Temperature Rise

Many machine tools perform very well right after startup, but after running continuously for a period of time, their accuracy begins to fluctuate.

  • It is necessary to observe the changes in the spindle, ball screws, and machine bed after temperature rise to determine whether thermal deformation will affect machining dimensions.
  • For high-precision CNC milling, thermal stability often explains more than a single static data point, because real production environments are not short-term operations.
  • If the equipment can still maintain stable accuracy after long periods of machining, it is better suited for high-demand orders and continuous batch production.

The better the thermal stability, the higher the reliability of the equipment in actual production.

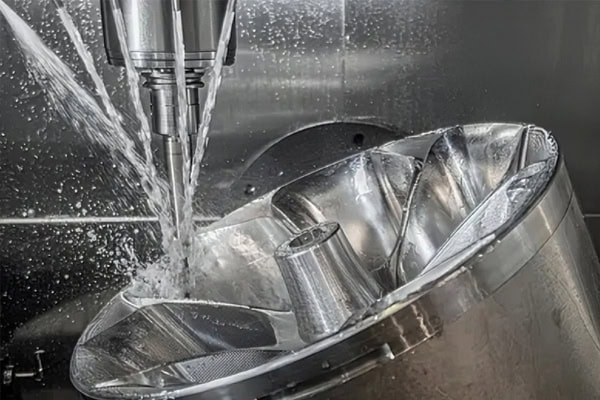

The machine tool spindle relies on the rotation of the cutting tool to cut the workpiece.

Use Professional Inspection Tools for Quantitative Verification

In addition to observing the condition of the machine itself, professional instruments are needed to quantify accuracy issues, so that the judgment becomes more objective.

Ballbar and Laser Interferometer

These tools are suitable for detecting the dynamic accuracy and axial errors of machine tools, and they can more intuitively reflect the operating condition of the equipment.

  • A ballbar can quickly reveal circularity errors, backlash, and interpolation accuracy, making it especially suitable for checking the overall performance of multi-axis coordinated motion.
  • A laser interferometer is more suitable for detecting positioning errors and repeat positioning errors, with more intuitive data and better suitability as a precision calibration reference.
  • The results obtained through these tools are usually more convincing than simple visual inspection or experience-based judgment.

Quantitative inspection with professional instruments helps customers judge the true accuracy of the equipment more accurately.

Dial Indicators, Test Indicators, and Plug Gauges

Although these tools are simple in structure, they are very practical in on-site inspection, with flexible operation and direct feedback. Dial indicators can be used to check spindle runout, flatness, and clamping deviation, making them suitable for quickly identifying basic problems. Plug gauges and gauge blocks are suitable for quickly confirming whether hole diameters, clearances, and reference dimensions are stable, especially for rapid sampling before batch production. Although these tools cannot replace high-end inspection equipment, they are very efficient in daily inspections and on-site verification. Basic measuring tools may be simple, but they are among the most commonly used and effective methods for judging equipment condition on site.

CMM and Surface Roughness Tester

If customers have higher requirements for dimensions and surface quality, it is not enough to look only at the machine tool itself; the actual inspection results of the final parts must also be considered.

  • A CMM can verify whether key dimensions truly fall within tolerance, making it especially suitable for complex structural parts and high-precision mating components.
  • A surface roughness tester can determine whether the surface quality meets the requirements for subsequent assembly, spraying, anodizing, or other processes.
  • Through these inspection data, customers can more clearly understand whether the parts truly meet delivery standards.

The inspection results of the final parts are the most direct basis for determining whether CNC milling accuracy meets the standard.

CNC vertical milling machine milling operation site.

Do Not Rely on Data Alone; Trial Machining Is Also Necessary

Equipment parameters can only indicate theoretical capability. What truly reflects machining performance is the actual behavior of the parts after trial cutting.

First Article Trial Cutting Best Reflects the Real Level

No matter how impressive the equipment parameters are, first article trial cutting is necessary for verification, because actual machining results are the most valuable reference.

  • After the first article is machined, key measurements such as hole spacing, flatness, perpendicularity, and critical mating dimensions should be checked to ensure that drawing requirements are truly met.
  • If deviations appear in the first article, it indicates that there may be problems in the program, tool compensation, clamping method, or datum setup.
  • First article trial cutting not only verifies the equipment, but also verifies whether the process plan is reasonable.

First article trial cutting is the first and most critical step in determining whether the equipment and process are properly matched.

Continuous Machining Reveals Batch Stability More Clearly

A single qualified part does not mean the batch will also be qualified. What customers really worry about is whether the next dozens or hundreds of parts can remain consistent. During continuous machining, attention should be paid to whether dimensional fluctuations gradually increase, especially after tool wear begins to affect the process. If errors increase significantly after tool wear, it means the process control is not mature enough, or the tool selection is not reasonable enough. CNC milling with good batch stability is more suitable for orders with tight delivery schedules and high requirements, and it also helps reduce rework risk. Stable performance in batch production truly reflects the comprehensive strength of the equipment and process.

Complex Parts and Thin-Walled Parts More Easily Expose Problems

Ordinary flat parts do not easily reveal equipment weaknesses, while complex structural parts are better for testing real capability.

  • Thin-walled parts are prone to deformation, which can show whether the fixture design and cutting parameters are reasonable, and also reflect the machine’s vibration control capability.
  • Deep cavity parts, irregular parts, and multi-face parts better reflect machine tool interpolation accuracy, toolpath planning, and process experience.
  • If complex parts can also be machined stably and qualified, it means both the equipment and the team have strong overall machining capability.

The trial machining results of complex parts often reveal the true accuracy level of the equipment better than simple parts.

What Should Customers Focus on When Choosing a Service Provider

In addition to the equipment itself, the management capability and process experience of the service provider also directly affect the final delivery quality.

Whether Calibration and Maintenance Records Are Available

A truly professional factory will not only emphasize that the equipment is new, but will also be able to provide complete maintenance and calibration records.

  • Regular equipment calibration shows that accuracy management is continuous rather than a temporary response to inspection.
  • Complete maintenance records indicate that the machine condition is more controllable and can more easily maintain stable machining capability over the long term.
  • If even basic maintenance records are incomplete, it is difficult to trust the equipment accuracy.

Calibration and maintenance records are an important basis for judging whether a factory truly values accuracy management.

Whether Inspection Reports and Process Feedback Can Be Provided

What customers need most is transparency, not just a simple “no problem.”

  • Being able to provide first article reports, in-process sampling, and final inspection data shows that the factory has clear control over accuracy.
  • Being able to give timely feedback and make adjustments when deviations occur makes the supplier more suitable for long-term cooperation and helps reduce communication costs.
  • Suppliers with transparent processes are usually more mature in quality management as well.

Complete inspection reports and process feedback can make customers feel more confident about handing over the project to the supplier.

Whether They Understand the Process, Not Just How to Operate the Machine

Many accuracy problems are not caused by the equipment itself, but by insufficient process judgment.

  • Experienced teams will consider datums, tools, fixtures, and thermal deformation in advance to reduce errors from the source.
  • They do not just operate the equipment; they also adjust machining strategies according to part structures, which is especially important for high-precision orders.
  • This is also why professional CNC milling services are often more important than simply looking at the machine model, because what truly determines the result is the overall capability.

A team that understands the process is often better able to ensure machining accuracy than a team that only owns the equipment.

Conclusion

When judging the accuracy of CNC milling equipment, it is not enough to look at a single parameter. Instead, it should be evaluated comprehensively from multiple dimensions such as basic parameters, professional instruments, trial machining results, and batch stability. Only through such a thorough inspection can customers truly confirm whether the equipment has the capability to consistently deliver high-precision parts. TiRapid can provide more reliable CNC milling accuracy control and inspection support for your project.
