Grinding machines are key equipment for precision machining in the manufacturing industry and are widely used in surface treatment and finishing of materials such as metals, ceramics, and glass. There are many types of grinders, depending on the grinding method, purpose, and shape of the workpiece, each with unique characteristics and applications. Next, I will introduce 14 common types of grinders in detail to help you understand their working principles and applications, and help you choose the most suitable grinder.
What Is A Grinder?
The grinding machine can precisely remove the material on the surface of the workpiece by rotating the grinding tool at high speed, thus achieving high-precision processing requirements . In the field of metal processing, the grinding machine can reduce the surface roughness of the workpiece and control the dimensional accuracy of the workpiece . The structure of the early grinding machine was relatively simple . Since the 18th century, the continuous advancement of mechanical manufacturing technology has promoted the gradual development of grinding machine technology , laying a solid foundation for the prosperity of the manufacturing industry. It has greatly improved the product qualification rate and market competitiveness.
The Core Component Of The Grinding Machine
The core part of the grinding machine plays a key role in its precision machining. It is mainly composed of four parts: the grinding wheel, including abrasive, binder and air hole , the workbench for fixing the workpiece , the spindle that drives the grinding wheel to rotate , and the feed system that accurately controls the position and speed of the grinding wheel and the workpiece .
Let ’s take a closer look at their features and functions :
Main Components Of The Grinding Machine
- Grinding wheel : Grinding wheel is the key component of the grinding machine, usually composed of three parts: abrasive, binder and pores.
- Abrasives such as aluminum oxide, silicon carbide, etc. have high hardness and wear resistance, which determines the cutting performance of the grinding wheel .
- The function of the binder is to bond the abrasives together. Common binders include ceramics, resins and rubber. Grinding wheels with different binders vary in hardness, strength and heat resistance .
- The pores help to remove chips and dissipate heat, ensuring the stability of the grinding process.
For example, in rough grinding, we often use grinding wheels with aluminum oxide abrasives and vitrified bonds, which have high hardness, good wear resistance, and can quickly remove large amounts of material . In fine grinding, we may use grinding wheels with silicon carbide abrasives and resin bonds to obtain better surface finish.
- Workbench : used to fix the workpiece to ensure the stability and position accuracy of the workpiece during the grinding process. The material of the workbench is usually of high hardness and wear resistance, such as cast iron, and its surface is precisely processed with a flatness of ±0.005 – ±0.01mm, which can provide precise support and positioning for the workpiece.
We can see that in some high-precision grinders, the worktable is equipped with advanced linear guides and ball screw transmission mechanisms, which can make the movement of the worktable more stable and precise, and the positioning accuracy can reach ±0.001 – ±0.003mm, which can effectively ensure the processing accuracy.
- Spindle : The spindle is a key component that drives the grinding wheel to rotate at high speed. Its speed is usually between 1000 and 10000rpm, or even higher. The specific speed depends on the type of grinder and processing requirements. The rotation accuracy of the spindle directly affects the cutting accuracy and surface quality of the grinding wheel. Generally, its radial runout and axial runout are required to be within ±0.002 – ±0.005mm.
If we want to achieve high-speed and high-precision rotation, the spindle must use high-precision bearings, such as hydrostatic bearings or rolling bearings, and be equipped with precise lubrication and cooling systems to reduce friction and thermal deformation and ensure long-term and stable operation of the spindle.
- Feed system : The feed system is responsible for accurately controlling the relative position and feed speed between the grinding wheel and the workpiece to achieve precision grinding of the workpiece. Common feeding methods include manual feeding, hydraulic feeding and CNC feeding.
We can learn from CNC grinding machines that the feed system is driven by a high-precision servo motor and ball screw to achieve micron-level or even nanometer-level precise feeding, and the feed resolution can reach 0.001 – 0.0001mm to meet our processing needs.
How A Grinding Machine Works
When the grinding wheel in the grinder rotates at high speed, the abrasive grains will form countless tiny cutting edges on the surface of the grinding wheel. When the grinding wheel contacts the workpiece, these cutting edges cut into the surface of the workpiece with a certain cutting force, removing the material bit by bit, thereby achieving grinding of the workpiece. Its principle is based on the micro-cutting effect of the abrasive grains. During the grinding process, in addition to the cutting effect, there are also extrusion, friction and sliding effects between the abrasive grains and the workpiece, which will generate a lot of heat. Therefore, an effective cooling and lubrication system is needed to reduce the temperature, reduce the thermal deformation of the workpiece and the wear of the grinding wheel, and ensure the processing accuracy and surface quality.
For example , if we want to process high-hardness alloy steel workpieces, we must reasonably select the abrasive, grain size and cutting parameters of the grinding wheel, and cooperate with appropriate cooling and lubrication conditions, so as to accurately control the material removal amount and surface quality, so that the workpiece can achieve the required dimensional accuracy and surface roughness requirements.
Types Of Grinding Machines
In my many years of mechanical processing practice, I have come into contact with various types of grinders, such as CNC grinders with high numerical control, surface grinders for surface grinding, cylindrical grinders for cylindrical surface processing, centerless grinders that do not require a top , internal grinders for finishing inner holes , gear grinders for carving gears, as well as bench grinders , tool grinders , belt grinders , column grinders , etc. Each type of grinder has its own unique advantages.
Below I will explain in detail their respective unique features and open the road to efficient and high-quality processing :
CNC Grinding Machine
CNC grinding machines use computer numerical control systems to precisely control the motion trajectory, feed speed, cutting depth and other parameters of the grinding wheel, achieving automated, high-precision grinding. Its control system can adjust the position and posture of the grinding wheel in real time according to the preset processing program to ensure accurate processing of complex-shaped workpieces.
Its machining accuracy can reach ±0.001 – ±0.003mm, and the surface roughness can reach Ra0.2 – Ra0.05μm. It has a high degree of automation and can continuously perform multiple processes, which greatly improves production efficiency and machining accuracy and reduces the impact of human factors on machining quality.
For example, we can find in the processing of aero-engine blades that CNC grinders can generate precise processing programs based on the complex surface shapes of the blades. Through five-axis linkage control, they can achieve efficient and precise grinding of the blade profiles to ensure the shape of the blades. The surface accuracy and surface quality meet the stringent requirements of the aerospace field, while significantly shortening the processing cycle and improving production efficiency.

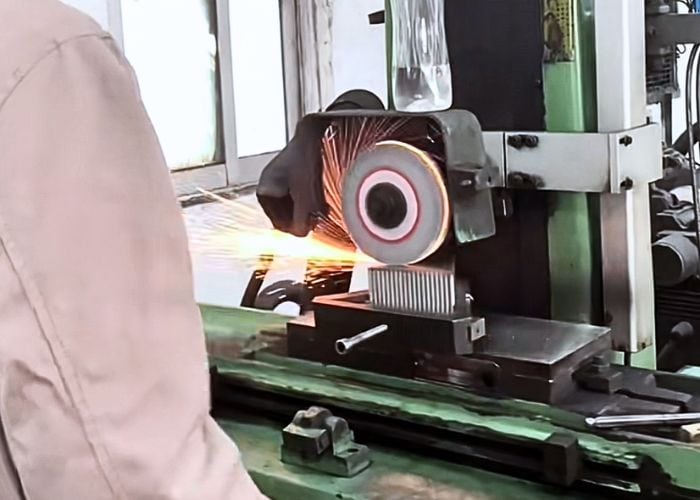

Surface Grinder
The surface grinder is mainly used for grinding flat surfaces. Its working principle is to grind the surface of the workpiece placed on the workbench through the rotation of the grinding wheel and the reciprocating motion of the workbench. The axis of the grinding wheel is usually perpendicular to the workbench, and through transverse and longitudinal feed movements, uniform grinding of the entire plane of the workpiece is achieved.
Its flatness can reach ±0.003 – ±0.008mm, and its surface roughness can reach Ra0.4 – Ra0.08μm. It can accurately process a plane with high flatness and smooth surface, and is suitable for processing various flat parts, such as machine tool guides, mold planes, etc. For example, in machine tool manufacturing, the machine tool guides processed by the surface grinder have high flatness and low roughness, which can ensure the stability and accuracy of our machine tool moving parts and improve the overall performance and processing accuracy of the machine tool.
Cylindrical Grinder
Cylindrical grinders focus on grinding cylindrical surfaces. The workpiece is installed between two centers or on a chuck. The grinding wheel rotates at high speed and reciprocates along the axis of the workpiece. At the same time, the workpiece rotates. The cylindrical surface is ground through the relative movement of the grinding wheel and the workpiece.
Its cylindricity can reach ±0.002 – ±0.005mm, and its surface roughness can reach Ra0.4 – Ra0.08μm. It can ensure the roundness and cylindricity accuracy of the cylindrical surface and meet the high-precision processing requirements of shaft parts.
For example , in the past, we used cylindrical grinders in the processing of automobile engine crankshafts. They can accurately grind the journal parts of the crankshafts to ensure their cylindricity and surface finish, so that the crankshafts have good balance and stability when rotating at high speeds, thereby improving the performance and reliability of automobile engines.
Centerless Grinder
centerless grinder does not need a top to support the workpiece, but instead grinds the workpiece through the synergy of the grinding wheel, guide wheel, and pallet. The grinding wheel rotates at high speed as the main cutting motion, the guide wheel rotates at a slower speed and drives the workpiece to rotate and feed axially, and the pallet supports the workpiece, so that the workpiece maintains a stable grinding position between the grinding wheel and the guide wheel. In this way, the outer circle of the workpiece is efficiently ground.
Its machining accuracy can reach ±0.003 – ±0.006mm, and the surface roughness can reach Ra0.4 – Ra0.08μm. It has high production efficiency and is suitable for batch production of long shaft parts, which can significantly reduce production costs while ensuring accuracy.
I once took an order from the bearing manufacturing industry , and at that time I was using a centerless grinder , which helped to grind the outer circle of the bearing quickly and accurately , and because there was no need for center clamping, it avoided damage to the workpiece surface caused by the center.
Internal Grinder
Internal grinding machines are used to grind inner holes. The working principle is to install the grinding wheel on the spindle and extend it into the inner hole of the workpiece. The grinding wheel rotates at high speed and makes radial feed motion. At the same time, the workpiece makes rotational motion. The inner hole is ground through the relative motion between the grinding wheel and the inner hole surface of the workpiece.
Its dimensional accuracy can be controlled within ±0.002 – ±0.005mm, the cylindricity can reach ±0.002 – ±0.004mm, and the surface roughness can reach Ra0.4 – Ra0.08μm. It can ensure the dimensional accuracy, shape accuracy and surface finish of the inner hole and meet the requirements of precision matching.
If used in the inner hole processing of the turbine disk of an aircraft engine, it can definitely accurately grind out a high-precision inner hole, ensure the close fit between the turbine disk and the shaft, and ensure the reliable operation of the engine in a high temperature and high pressure environment.
Gear Grinder
Gear grinders are specially used for grinding gear tooth surfaces. According to the principle of the generation method or the forming method, the tooth shape of the gear is accurately ground through the relative movement of the grinding wheel and the gear. The forming method uses the principle of gear meshing motion to make the grinding wheel and the gear roll relative to each other under a certain transmission ratio, thereby grinding an involute tooth shape . The forming method is to use a grinding wheel with the same shape as the gear tooth groove for grinding. cut.
The tooth shape accuracy can reach ±0.005 – ±0.01mm, the tooth direction accuracy can reach ±0.003 – ±0.005mm, and the surface roughness can reach Ra0.4 – Ra0.08μm. It can significantly improve the accuracy and meshing performance of gears, reduce the noise and vibration of gear transmission, and improve transmission efficiency and reliability.
Imagine that in the processing of automobile transmission gears, the gears processed by high-precision gear grinders generally have good tooth shape and tooth direction accuracy, making the gears more stable during the meshing process, reducing energy loss and wear, and improving the fuel economy and power transmission efficiency of the car.
Bench Grinder
The bench grinder is small in size, usually driven by a motor to rotate the grinding wheel at high speed, and the operator holds the workpiece close to the grinding wheel for grinding. Its working principle is relatively simple, and it is mainly used for simple grinding tasks, such as tool sharpening, part deburring, etc.
Its speed is generally between 3000-5000rpm, and the grinding wheel size can be selected from 40-120 mesh according to different processing requirements. It is small and light, flexible to operate, and convenient to use in different locations in the workshop. It can meet general grinding needs and improve work efficiency.
For example, on the bench in our factory, the bench grinder can be used at any time to grind the cutting edge of the tool to keep it sharp and improve cutting efficiency. It can also quickly deburr the edges of some small parts to make the surface of the parts smoother.
Tool And Cutter Grinder
Tool grinders are mainly used for precision grinding of cutting tools and tools. According to the geometric shapes and precision requirements of different cutting tools, the position, angle and motion trajectory of the grinding wheel are adjusted to accurately grind the various blade surfaces and angles of the cutting tools. Its principle is based on the precise control of spatial geometric motion, and it can achieve high-precision grinding of complex-shaped cutting tools.
Generally speaking, its cutting edge straightness can reach ±0.002 – ±0.005mm, the cutting edge inclination accuracy can reach ±0.01 – ±0.03°, and the surface roughness can reach Ra0.4 – Ra0.08μm. It can ensure the sharpness and accuracy of the tool and improve the cutting performance and service life of the tool.
For example, when we produce carbide milling cutters, the tool grinder can accurately grind the spiral blade surface, end blade and back angle of the milling cutter, so that the milling cutter can efficiently remove materials during the cutting process, and has good chip removal performance and cutting stability, thereby improving processing quality and efficiency.
Belt Grinder
The belt grinder uses abrasive belts as grinding tools. The abrasive belts are installed on two pulleys. The pulleys are driven by a motor to rotate, so that the abrasive belts move at high speed. The workpiece contacts the abrasive belts and moves relative to them, thereby achieving grinding. The grinding method of the abrasive belt has both cutting, grinding and polishing effects, and can obtain better surface quality.
Its surface roughness can reach Ra0.4 – Ra0.1μm, with high processing efficiency, suitable for large-area grinding and deburring operations. The abrasive belt can be replaced quickly and conveniently, and abrasive belts of different particle sizes and materials can be selected according to different processing materials and requirements, with strong adaptability.
For example, in metal sheet processing, we use belt grinders to quickly grind the edges of the sheets, remove burrs, and improve the surface quality of the sheets. At the same time, we can also polish the surface of the sheets to a certain extent to make it smoother and more beautiful.
Pedestal Grinder
The column grinder is similar to the bench grinder, but it is more powerful and more sturdy. The grinding wheel is driven by an electric motor, and the operator fixes the workpiece on the workbench or holds the workpiece close to the grinding wheel for grinding. It is usually used for grinding heavier workpieces. Its working principle is also to cut the surface of the workpiece through the high-speed rotation of the grinding wheel.
The diameter of the grinding wheel is generally between 150-300mm, and the rotation speed is around 1500-3000rpm. It can withstand large grinding forces and is suitable for grinding workpieces of larger size and weight, such as surface grinding of castings in foundries and deburring of large parts in machining.
For example, column grinders are generally used in foundries . They can effectively remove defects such as sand holes and flash on the surface of large castings, so that the surface finish of the castings meets certain requirements and prepare for subsequent processing procedures.

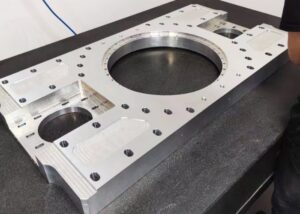

Double-Column Surface Grinder
The double-column surface grinder has high rigidity and precision. Its working principle is similar to that of the surface grinder, but it uses a double-column structure to support the worktable and the grinding wheel frame, making the machine more stable during the grinding process and able to withstand greater cutting forces. Through the rotation of the grinding wheel and the movement of the worktable, precision grinding of large flat workpieces is achieved.
Its flatness can reach ±0.002 – ±0.005mm, and its surface roughness can reach Ra0.2 – Ra0.05μm, which is suitable for high-precision grinding of large planes.
manufactured a large ship part for a company , and the double-column surface grinder helped me process this large flat component, which ensured the flatness and dimensional accuracy of the part ‘s surface .
Angle Grinder
Angle grinder is a portable handheld grinder, which is driven by a motor to rotate the grinding wheel at high speed. The operator holds the angle grinder and puts the grinding wheel in contact with the workpiece, and uses the high-speed rotation of the grinding wheel to grind, cut and other processing operations on the workpiece. Its working principle is simple and the operation is flexible and convenient.
The grinding wheel has a rotation speed of 8000-12000rpm. It is small, light and easy to carry. It is suitable for preliminary processing of metal cutting and grinding, such as metal pipe cutting and weld grinding in building decoration. However, its grinding accuracy is relatively low and it is mainly used for rough processing.
For example, at a construction site, an angle grinder can quickly cut metal pipes. After adjusting the angle, it can also simply grind the cut surface of the pipe to remove burrs and sharp edges, thereby improving construction efficiency. However, it is not very suitable for metal processing tasks that require higher precision.
Portable Grinder
Portable grinders also perform grinding based on the high-speed rotation of the grinding wheel. They are compact and lightweight, making them easy to operate in different locations. The grinding wheel is driven by a built-in motor, and operators can grind and repair small workpieces by hand or with the help of a simple fixture.
Depending on the model, the grinding wheel speed is around 3000 – 8000rpm. It is small in size and easy to carry and operate.
If parts of our small mechanical equipment are worn or have surface defects, the portable grinder can quickly perform simple grinding and repair on the damaged parts, allowing them to temporarily resume normal operation, avoiding long shutdowns caused by equipment failures, and reducing maintenance costs and time costs.
Universal Grinder
Universal grinders have multiple grinding functions. By replacing different grinding wheels and adjusting the motion mechanism of the machine tool, it can achieve grinding of various shapes of surfaces such as inner circles, outer circles, planes, and conical surfaces. Its principle is to combine the working characteristics of various types of grinders and meet the complex processing requirements of different workpieces through precise motion control and grinding wheel selection.
Its machining accuracy can reach ±0.002 – ±0.005mm, and the surface roughness can reach Ra0.2 – Ra0.05μm. For example, in precision machining enterprises, for some parts with complex shapes and high precision requirements, such as some key parts of aircraft engines, universal grinders can complete grinding of multiple surfaces on one device, which can reduce the number of clamping and handling of workpieces between different machine tools, reduce machining errors, and also save equipment procurement costs and workshop space.
The following are the applicable materials for the fourteen common grinders:
| Grinding machine type | Applicable Materials |
| CNC grinding machines | Stainless steel, alloy steel, aluminum alloy, high hardness mold steel, special alloy materials for aerospace |
| Surface grinding machine | Ordinary carbon steel, cast iron, non-ferrous metals and other metal plates and blocks |
| Cylindrical grinding machine | Carbon steel, alloy steel, bearing steel and other shaft parts materials |
| Centerless grinding machine | Bearing steel, carbon steel and other long shaft parts materials are widely used in the bearing manufacturing industry |
| Internal grinding machine | Alloy steel, carbon steel and other metal materials, engine cylinder, gear inner hole, etc. |
| Gear grinding machines | Gear processing of alloy steel, carbon steel and other metal materials |
| Bench grinder | Small tools and parts made of ordinary carbon steel, alloy steel, such as bench tools, small shaft parts |
| Tool Grinder | Cemented carbide, high-speed steel and other tool materials, milling cutters, drills, taps, reamers, etc. |
| Belt grinder | Metal materials such as carbon steel, stainless steel, aluminum alloy, wood, leather, plastic, etc. |
| Column grinder | Large castings such as cast iron and carbon steel, heavy workpieces such as forgings |
| Double column surface grinder | Large metal flat parts such as carbon steel, alloy steel, etc., such as large flat parts of marine engines |
| Angle grinder | Preliminary grinding and cutting of ordinary carbon steel, stainless steel and other metal materials |
| Portable Grinder | Repair and processing of small metal parts such as carbon steel, aluminum alloy, etc., such as small shaft parts |
| Universal grinding machine | Stainless steel, alloy steel, non-ferrous metals, etc., mostly used in aerospace and precision instrument parts |
Grinding Machine Applications And Industry Cases
Grinding machines play a key role in various industries with their high-precision processing advantages. From the precision molding of automotive parts to the strict standards of aerospace parts , from the fine manufacturing of medical devices to the performance requirements of electronic equipment components, and the quality upgrade of building decoration materials, grinding machines are present in all of them .
Next, let us explore the unique charm and value of grinders in these fields :
Automobile Manufacturing Industry
The machining accuracy of key components such as the crankshaft and camshaft of an automobile engine directly affects the performance and reliability of the engine, and grinding machines play an indispensable role in the machining of these components.
For example, after the crankshaft journal is precision-ground by a grinder, the surface roughness can reach Ra0.2 – Ra0.4μm, and the cylindricality error is controlled within the range of ±0.002 – ±0.005mm, ensuring smooth engine operation and stable power output, effectively improving the overall performance and fuel economy of the vehicle.
Aerospace
Blades, turbine disks, shaft parts and other parts of aircraft engines have extremely high requirements for precision and surface quality. Any slight processing error may have a significant impact on the performance and safety of the engine. Grinding can make the surface accuracy of blades reach ±0.003 – ±0.005mm, and the surface quality meets the strict aviation standards, ensuring the safe and reliable operation of the engine under extreme conditions such as high temperature and high pressure.
For example, the use of advanced five-axis linkage CNC grinders to process aircraft engine blades can accurately control the complex curved surface shape of the blades, ensure the aerodynamic performance of the blades, improve the flight performance and safety of the aircraft, and provide solid technical support for the development of the aerospace industry.
Medical Equipment Industry
The manufacture of medical devices such as artificial joints requires extremely high precision and surface quality to ensure good compatibility with human tissue and long-term stability. Grinding machines play a key role in the processing of hip prostheses, knee prostheses, etc. For example, the surface of hip prostheses needs to be ground with high precision to make it smooth (surface roughness can reach Ra0.05 – Ra0.1μm) and precise (dimensional tolerance is controlled within ±0.005 – ±0.01mm) so that it can better match the human skeleton and reduce wear and rejection .
Electronic Equipment Manufacturing
Components such as heat sinks and chip pins in electronic equipment require fine processing by grinders to meet their strict requirements for dimensional accuracy and surface quality.
For example, after being processed by a grinder, the heat sink has a high flatness (flatness can reach ±0.003 – ±0.005mm), which can better fit the chip, improve heat dissipation efficiency, and ensure the stability of electronic equipment during long-term operation .
Building And Decoration Materials
Grinding machines are used in the processing of building decoration materials such as stone and metal plates to improve the surface quality and aesthetics of the materials. For example, after being polished by a grinder, the surface of a marble plate has high gloss and good flatness (flatness can reach ±0.01 – ±0.02mm), which meets the aesthetic and quality requirements of building decoration and improves the overall quality and value of the building.
In metal sheet processing, grinders can be used to grind and polish stainless steel plates, aluminum plates, etc., reducing their surface roughness to Ra0.2 – Ra0.4μm, achieving the dual effects of decoration and protection. They are widely used in building curtain walls, interior decoration and other fields, providing high-quality material processing solutions for the construction and decoration industries.
Advantages And Challenges Of Grinding Machines
In the field of mechanical processing, grinding machines are an important part, and their performance has both advantages and challenges. On the one hand, high precision, excellent surface quality and the ability to process high-hardness materials make them play a key role in precision manufacturing . On the other hand, problems such as processing efficiency, equipment cost and grinding wheel maintenance also exist objectively.
Advantages Of Grinding Machines
- High processing precision: Grinding machines can achieve sub-micron or even nanometer processing precision. For example, in precision mold manufacturing and aerospace parts processing, the dimensional accuracy can be controlled within an extremely small range, meeting the processing needs of products with extremely high precision requirements and ensuring high quality and high performance of the products.
- Good surface quality: Through grinding, the workpiece can obtain a smooth surface with low surface roughness, which can effectively improve the product’s appearance quality and wear resistance, corrosion resistance and other properties. For example, in the manufacture of medical devices and electronic equipment, good surface quality is crucial to the performance and life of the product.
- Capable of processing high-hardness materials: Grinding machines can process high-hardness materials such as hardened steel and cemented carbide, broadening the processing range of materials and meeting the processing needs of some special industries for high-hardness parts, such as tool manufacturing, aircraft engine blade processing and other fields.
Limitations Of Grinding Machines
- Relatively low processing efficiency: Compared with some rough processing equipment, the processing speed of the grinding machine is slower, especially for large workpieces or batch production, the processing time is longer, which may affect production efficiency and cost-effectiveness. For example, in the mass production of simple-shaped shaft parts, turning may have more efficiency advantages than grinding.
- High equipment cost: The manufacturing precision and technical requirements of the grinder are high, resulting in relatively high equipment procurement costs. At the same time, the maintenance of the grinder also requires professional technology and equipment, which increases the company’s equipment investment and operating costs.
- Grinding wheel wear needs to be replaced regularly: Grinding wheels will gradually wear out during the grinding process and need to be replaced regularly, which not only increases production costs, but may also lead to extended downtime and affect production progress. Moreover, the selection and replacement of grinding wheels requires certain technical experience to ensure processing quality and efficiency.
FAQs
What Are The Three Types Of Portable Grinders?
The most common ones I know are angle grinders, portable straight grinders and small handheld grinders. Angle grinders have a speed of 8000-12000rpm and a power of 500-1500W, which are used for cutting and grinding. Portable straight grinders have a speed of 10000-15000rpm and a power of 300-800W, which are suitable for fine grinding . Small handheld grinders have a speed of 3000-8000rpm and a power of 200-600W, which are used for simple metal grinding to meet different on-site processing needs.
What Is The Difference Between A Grinder And A Grinder?
Grinding machines are used for high-precision, large-scale metal processing. They have precision feed systems and a variety of grinding wheels, and can reach sub-micron accuracy . Lapping machines are mainly used for workpiece surface finishing. They have relatively low precision and use media such as abrasive paste. They are suitable for occasions that have requirements on surface quality but not on precision. The two differ in precision, application scenarios and equipment structure.
What Is The Difference Between A Grinder And A Sander?
Grinders are used for precision grinding of hard metal materials, and their grinding wheels have high hardness . Sand mills are used for grinding soft materials such as coatings and inks. The sanding medium is soft and dispersed, and the grinders have high precision. Sand mills focus on material dispersion and mixing, and their working principles and application fields are different.
Are Bigger Grinders Better?
No. The size of the grinder should be selected according to the workpiece size, precision requirements and production batch. Large grinders are suitable for large workpieces, but the investment cost is high and the energy consumption is high . Small grinders are highly flexible and low cost, and are suitable for small precision parts processing. The cost performance and actual needs should be comprehensively considered.
How Do I Change The Grinding Wheel On A Bench Grinder?
We should cut off the power supply first, loosen the grinding wheel fastening nut with a special wrench, remove the old grinding wheel and clean the grinding wheel shaft and mounting seat, install the new grinding wheel and pay attention to the balance, check the balance again after tightening the nut, and finally turn on the power and run it idle for a few minutes to check the operation and ensure safety.
Does A Bench Grinder Need To Be Bolted Down?
I· Usually, bolt fixing is required for heavy or high-precision grinding operations . It can reduce vibration, improve processing accuracy and stability, avoid grinding force causing grinder displacement, and ensure quality and safety, such as high-precision tool grinding.
Can A Bench Grinder Be Used On Wood?
I don’t recommend using it for wood . The grinding wheels of bench grinders are designed for metal. They are prone to clogging and aggravated wear when used on wood. They also produce a lot of dust, which affects the life of the equipment and the processing effect. If you need to process wood, it is recommended to use special woodworking grinding equipment.
Why Does The Grinder Run So Slowly?
I think it may be due to motor failure, belt loosening or insufficient voltage. Check the motor winding, adjust the belt tension and measure the voltage. If the belt is loose, adjust the motor position or replace the belt to restore the speed and ensure processing efficiency and quality.
What Should I Look For When Buying A Bench Grinder?
purchasing a bench grinder, we should pay attention to the motor power (200-500W is suitable for small processing), grinding wheel size and quality, speed range, safety protection devices (protective cover, emergency brake, etc.), as well as brand and after-sales service to ensure long-term stable use and maintenance of the equipment and meet processing needs.
Conclusion
Through a comprehensive understanding of grinding machines, we realize that they play an irreplaceable role in modern manufacturing. Despite some challenges, with the continuous advancement of technology, grinding machines will continue to develop, providing more precise and efficient processing solutions for various industries, and driving the manufacturing industry forward.
