In modern manufacturing, CNC machining has become one of the core processes for producing precision plastic parts. Compared to traditional manual or mold-forming methods, CNC plastic processing offers greater flexibility, better dimensional accuracy, and faster prototyping efficiency. However, truly “effectively utilizing” this technology requires more than just operating the equipment; it necessitates a complete system encompassing material understanding, process design, and machining control.
What is CNC Plastic Machining?
- Definition and Essence of CNC Plastic Machining

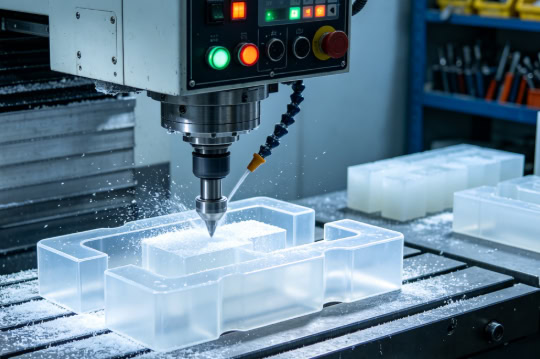

CNC plastic machining refers to a manufacturing method that uses computer programs to control machine tool cutting tools to perform precision machining such as cutting, milling, and drilling on plastic materials. Its essence is a combination of “digital control + mechanical cutting,” controlling tool movement through program paths to achieve high-precision part manufacturing. Compared to traditional machining methods, it does not rely on fixed molds and can quickly process complex structures.
- Characteristics of CNC Machining in the Plastics Field
Unlike metals, plastic materials have lower hardness, higher thermal sensitivity, and higher elasticity, making them more susceptible to temperature and stress during processing. This also means that CNC plastic machining must not only focus on dimensional accuracy but also prioritize the control of deformation, heat-affected zones, and surface quality. Furthermore, the processing behavior of different plastic materials varies significantly, making process control even more challenging.
- The Core Value of CNC Machining
The greatest advantage of CNC plastic machining lies in its flexibility and precision control capabilities. It enables rapid small-batch production and can also machine complex structural parts, while offering extremely high efficiency in design modifications. Therefore, it is widely used in prototyping, medical components, electronic casings, and other fields.
Standardized Machining Steps
- Preliminary Design and Programming Preparation
Before formal machining, CAD modeling and CAM programming are required. The design phase must fully consider the characteristics of the plastic material, such as avoiding stress concentration at sharp corners and controlling wall thickness uniformity. Subsequently, the toolpath program is generated using CAM software, determining the machining path, feed rate, and cutting strategy. This step determines the basic direction of subsequent machining.
- Material Preparation and Clamping
Before the material enters the machining process, dimensional verification and surface inspection are necessary to avoid internal cracks or stress defects. During clamping, uniform force should be ensured to avoid localized compression that could lead to deformation. For thin-walled or large-area sheets, vacuum adsorption or multi-point support methods are typically used to improve stability.
- Staged Machining Execution
Actual machining is usually divided into three stages: roughing, semi-finishing, and finishing. Roughing is mainly used to quickly remove excess material, semi-finishing is used to stabilize the structural shape, and finishing is responsible for final dimensional control and surface quality optimization. This staged approach can effectively reduce stress concentration and improve overall machining stability.
- Post-processing and Quality Inspection
After machining, a static resting process is required to allow the internal stress of the material to gradually release. Then, key dimensions are inspected using measuring tools to confirm whether they meet design requirements. For high-precision parts, secondary correction machining may be performed to ensure final consistency.
Key Factors Affecting Machining Quality
- Reasonable Matching of Cutting Parameters
Cutting parameters are one of the core factors affecting machining quality. If the rotational speed is too high, it will cause localized heating and softening of the plastic; if the feed rate is too slow, it may increase friction time, also generating heat. Therefore, dynamic adjustments are needed based on different material properties, rather than using fixed parameters.
- Tool Selection and Sharpness Control

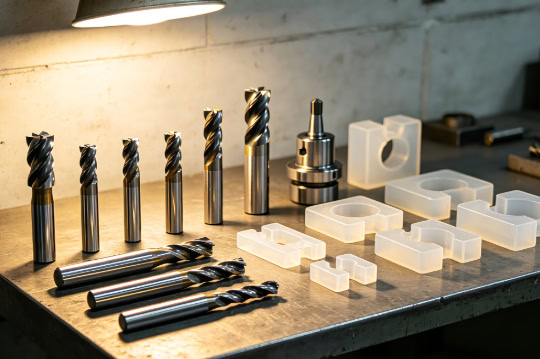

Tool condition directly determines cutting results. Sharp tools reduce resistance and heat buildup, making cutting smoother; while dull tools are prone to burrs or even scorching. For plastic machining, single-edged or specialized plastic tools are generally recommended to reduce friction.
- Heat Control and Cooling
Plastics are extremely sensitive to temperature, so heat buildup must be strictly controlled during machining. Common methods include improving chip removal efficiency, using air cooling, and optimizing toolpath selection to avoid prolonged cutting stops, thereby reducing deformation caused by localized overheating.
- Fixture Stability and Stress Control
Fixture design must not only ensure secure fixing but also avoid excessive clamping. Excessive clamping force will release stress after machining, causing deformation. Therefore, a uniform force design should be adopted, combined with soft padding for cushioning, to improve overall stability.
Materials Determine the Basis of Machining Results
- High-Stability Engineering Plastics
Materials such as POM and PEEK have good dimensional stability and low deformation characteristics, making them very suitable for high-precision parts machining. POM has excellent processing performance and is suitable for mechanical structural parts; PEEK has high-temperature resistance and is suitable for high-end industrial applications. Although these materials are more expensive, they offer greater processing stability.
- Conventional General-Purpose Plastic Materials
Materials such as ABS and PC are common engineering plastics with good processing performance and cost advantages. However, they may still deform under high temperature or stress conditions, requiring more precise process control during processing.
- Easily Machinable but Sensitive Materials
Materials such as PMMA (acrylic) or PVC have good processing properties, but are very sensitive to heat and stress, easily cracking or warping. Therefore, cutting parameters must be strictly controlled during use, and over-machining should be avoided as much as possible.
- Core Principles of Material Selection
In practical applications, material selection should comprehensively consider the product’s intended use, precision requirements, and cost budget. High precision prioritizes stable materials, appearance prioritizes transparent or aesthetically pleasing materials, and cost-sensitive projects require a balance between performance and economy.
Common Problems
Why do different manufacturers produce significantly different results when using the same drawings for CNC plastic machining?
This is a very common question. The main reason lies in the differences in equipment precision, process experience, and parameter control among different manufacturers. Even if the drawings are completely identical, significant differences in the final results will occur if the cutting parameters are set differently, the fixture method is different, or the material pretreatment is inadequate. Furthermore, the machining personnel’s understanding of material properties directly affects the quality of the finished product. Therefore, CNC machining is not only a reflection of equipment capabilities but also a reflection of process management capabilities.
conclusion
To effectively utilize CNC machining for plastic processing, every step, from initial design and programming to material preparation and fixture fixing, and then to parameter control and tool selection during the machining process, will affect the final result. Plastics, in particular, are highly sensitive to temperature and stress; if any step is not well controlled, problems such as deformation, dimensional inaccuracies, or poor surface quality can easily occur. At the same time, material selection is also crucial. Different plastics exhibit significant differences in processing performance; some are highly stable, while others are prone to deformation. Choosing the wrong material, even with excellent processing techniques, will make it difficult to guarantee the desired results. Only when every step is rationally controlled and executed in a standardized manner can CNC machining truly realize its advantages and achieve stable, high-precision, and highly consistent production of plastic parts.
