Motorcycle braking systems directly affect vehicle deceleration, braking response, and riding stability. As a result, brake components require high dimensional accuracy, consistent assembly, sufficient material strength, and reliable surface quality. With the growing demand for performance motorcycles, racing motorcycles, and customized powersports vehicles, traditional machining methods can face challenges when producing complex geometries, tight tolerances, and low-volume custom parts.CNC precision machining provides an efficient solution by combining 3-axis, 4-axis, and 5-axis milling with CNC turning. These technologies can be used to manufacture motorcycle brake components with consistent accuracy and repeatability. TiRapid provides CNC machining solutions for motorcycle parts, including brake caliper brackets, mounting components, and other performance-oriented parts, supporting projects from prototypes to production.
Get 20% offf
Your First Order
Need custom metal and plastic parts?
Machining Requirements for Motorcycle Brake Components
Tight Dimensional and Assembly Tolerances

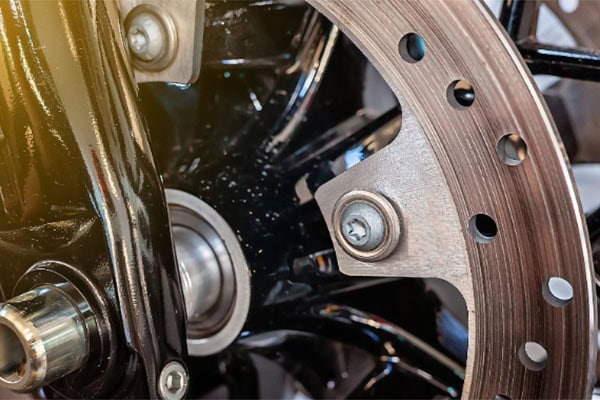

Brake caliper brackets, brake levers, adapters, mounting bases, bushings, and other components often need to fit precisely with calipers, forks, wheel hubs, and related structural components.
Variations in mounting hole position, bore diameter, flatness, or concentricity can affect component assembly. Therefore, CAD/CAM programming, precision positioning, appropriate fixturing, and dimensional inspection are important throughout the machining process.
TiRapid’s CNC machining services can achieve typical tolerances down to ±0.01 mm, with machining requirements adjusted according to the component design and functional specifications.
Balancing Lightweight Design and Structural Strength
Motorcycle brake components must withstand mechanical loads generated during braking while maintaining an appropriate weight level. Aluminum alloys such as 6061-T6 and 7075-T6 offer a useful combination of strength-to-weight ratio and machinability, making them suitable for selected caliper brackets, mounting brackets, and lightweight structural components.
Stainless steel and alloy steel can be considered for components requiring higher strength, wear resistance, or fatigue resistance. TiRapid can provide different metal machining options according to the intended application and component requirements.
CNC Precision Machining Processes for Brake Components
CNC Milling
CNC milling is suitable for brake caliper brackets, mounting bases, adapter plates, and other components featuring multiple mounting holes or complex contours.
3-axis, 4-axis, and 5-axis CNC machining can be selected according to the component geometry. For complex brake components with curved surfaces, thin walls, angled features, and multi-face structures, 5-axis machining can reduce repeated setups and improve positional consistency between machined surfaces.
CNC Turning

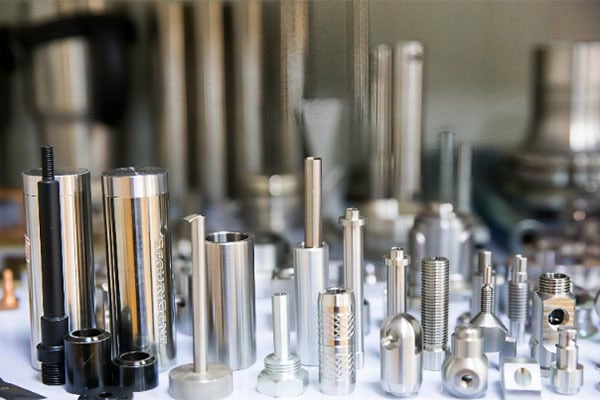

CNC turning is suitable for rotational brake components such as bushings, sleeves, pins, spacers, and other cylindrical parts. It can provide consistent control over outside diameters, inside diameters, end faces, grooves, and threads.
For precision motorcycle components, CNC turning helps maintain dimensional consistency while supporting efficient production of both prototypes and production quantities.
Multi-Process Precision Machining
Some brake components combine milling, drilling, tapping, boring, chamfering, and other machining operations. By developing an optimized process sequence and combining precision fixtures with dimensional inspection, manufacturers can reduce accumulated machining errors and maintain critical assembly dimensions.
Common Motorcycle Brake Components and Machining Solutions
TiRapid Motorcycle Brake Component Machining Process
CAD Drawing and DFM Analysis
After receiving 2D engineering drawings or 3D CAD models, the engineering team can conduct Design for Manufacturing (DFM) analysis based on material selection, wall thickness, hole positioning, machining accessibility, and fixturing requirements.
Potential manufacturing challenges can be identified before production begins. TiRapid supports projects ranging from product prototypes and low-volume production to larger production requirements, with engineering and DFM support available to optimize manufacturability.
Material and Machining Parameter Selection
The appropriate material is selected according to the component’s load requirements, weight targets, corrosion resistance, operating environment, and application conditions.
Machining parameters, cutting tools, fixtures, and machining sequences are then determined according to the material and geometry. Proper process planning can help reduce deformation and dimensional variation during production.
CNC Precision Machining
3-axis, 4-axis, or 5-axis CNC machines can be selected according to the component structure.
Complex brake brackets can benefit from multi-axis machining to reduce repeated setups, while bushings, pins, and other rotational components can be produced through CNC turning for consistent dimensions and efficient production.
Surface Treatment and Quality Inspection
After machining, components can receive surface treatments such as anodizing, hard anodizing, sandblasting, polishing, plating, or powder coating according to the application requirements.
For motorcycle brake components, inspection should focus on critical dimensions, hole positions, threads, surface quality, and assembly-related features. Appropriate surface treatment can also improve corrosion resistance and provide the required appearance for performance motorcycle components.
Applications for Different Motorcycle Projects
Precision machining of motorcycle brake components is suitable for standard motorcycles as well as racing motorcycles, high-performance customized motorcycles, electric motorcycles, and other powersports applications.
For new product development, CNC machining enables rapid prototype production and functional verification. Once the design has been validated, stable machining processes and quality control procedures can be established for low-volume or production manufacturing.
For brake components requiring lightweight structures, complex geometries, and precise assembly, TiRapid can combine CNC milling, CNC turning, and multi-axis machining capabilities to provide an integrated manufacturing solution.
From material selection and DFM analysis to prototype development and production machining, the process can be adapted to the requirements of different motorcycle brake component projects.
Precision machining of motorcycle brake components involves more than dimensional accuracy. Material selection, structural design, machining processes, surface treatment, and quality inspection all contribute to the final performance and assembly consistency of the component.By selecting an appropriate CNC machining process, manufacturers can meet the requirements of brake caliper brackets, mounting bases, bushings, pins, adapters, and other motorcycle brake components.With CNC milling, CNC turning, and multi-axis machining capabilities, TiRapid provides flexible manufacturing support for powersports customers, covering prototype development, low-volume production, and production machining. This helps motorcycle component projects move efficiently from design validation to stable manufacturing.
