The development of medical devices has placed higher requirements on component precision, stability, and safety. Products such as micro sensors, surgical instruments, implant components, and testing equipment usually require precision parts with smaller dimensions and more complex structures. TiRapid provides customized manufacturing services including precision CNC machining, micromachining, sheet metal fabrication, and 3D printing, supporting the complete process of the medical industry from product design verification, small-batch prototyping to mass production. Relying on a strict quality management system, engineering support, and DFM design optimization services, TiRapid helps customers manufacture high-precision medical components that meet application requirements.
Application Requirements of High-Precision Micromachining in the Medical Industry
Components used in medical equipment are usually small in size but perform critical functions. For example, micro connectors in surgical tools, internal structural components of testing equipment, and precision motion components in medical instruments all require accurate dimensions, smooth surfaces, and long-term stable operation. High-precision micromachining technology can meet the manufacturing requirements of these specialized components.

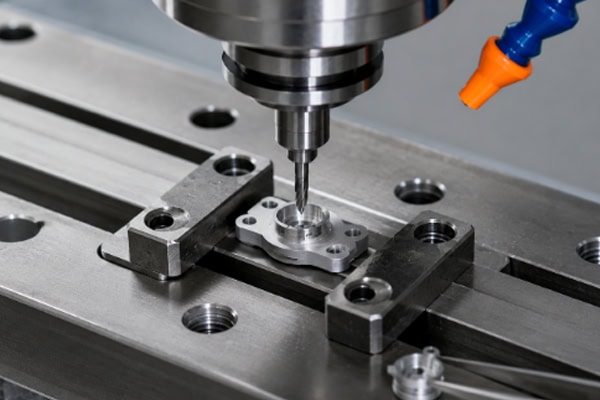

Demand for Micro Medical Component Machining
As medical equipment continues to develop toward miniaturization, component sizes are becoming increasingly smaller. Traditional machining methods often struggle to ensure the quality of tiny holes, complex curved surfaces, and fine structures, while high-precision micromachining can achieve detailed control through advanced CNC equipment. TiRapid evaluates component structures based on medical product drawings, selects appropriate machining methods, materials, and process parameters to improve machining stability. Whether it is a single research prototype or small-batch production of medical components, TiRapid can provide suitable manufacturing solutions.
Common medical micromachining components include:
| Application Product | Machined Components |
| Surgical Equipment | Micro clamps, connectors, positioning components |
| Testing Instruments | Precision housings, sensor brackets |
| Medical Robots | Joint components, motion structural parts |
| Laboratory Equipment | Micro fluid components, fixing structures |
Precision Requirements for Medical Industry Machining
Medical components require not only accurate dimensions but also excellent surface quality and assembly consistency. If dimensional deviations occur, they may affect equipment performance. Therefore, strict control is required throughout the machining process. TiRapid uses CNC machining, five-axis machining, precision inspection, and other manufacturing methods to help customers produce complex structural components while ensuring product consistency between different production batches through quality management processes.
TiRapid High-Precision Medical Micromachining Manufacturing Process
Medical products require coordination between multiple stages from design to production. A reasonable machining process can reduce manufacturing risks and improve product development efficiency. TiRapid provides one-stop manufacturing support from design analysis to component delivery, enabling customers to complete medical product development more efficiently.
Design File Analysis and DFM Optimization
Before machining medical components, CAD drawings, 3D models, and structural requirements need to be analyzed. The engineering team checks whether the component design is suitable for manufacturing and provides optimization suggestions. TiRapid provides free DFM report services to help customers identify potential issues before production begins, including machining difficulty, material selection, and structural adjustments, reducing production risks from the design stage.
The optimization process mainly includes:
- Checking whether the component structure is suitable for machining;
- Analyzing whether dimensional tolerances are reasonable;
- Recommending suitable machining processes;
- Optimizing production costs.

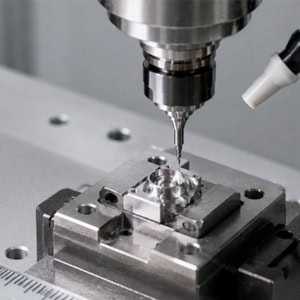

Precision Micromachining Production Process
After the design confirmation is completed, the project enters the formal manufacturing stage. According to the characteristics of the components, different machining methods such as CNC milling, CNC turning, and five-axis machining can be selected. For medical components with complex structures and small dimensions, multi-axis machining can reduce the number of setups, improve machining accuracy, and maintain the integrity of the component surface. TiRapid supports five-axis CNC machining and precision component manufacturing, meeting the production requirements of complex medical structural parts.
Quality Inspection and Product Delivery
The medical industry has high requirements for component reliability. After machining is completed, dimensional inspection, appearance inspection, and functional verification are required. TiRapid implements quality control standards throughout the manufacturing process, inspects critical dimensions, and ensures that components meet customer design requirements. Through fast quotation, engineering communication, and production tracking, customers can clearly understand project progress.
Material Selection and Technology Options for Medical Micromachining
Different medical equipment environments have different requirements for component materials. Selecting suitable materials can improve component service life, stability, and machining performance.
Common Materials for Medical Component Machining
Medical products usually use metal and engineering plastic materials. Different materials have different characteristics and need to be selected according to product applications.
| Material Type | Characteristics | Common Applications |
| Stainless Steel | High strength, corrosion resistance | Surgical tools, structural components |
| Titanium Alloy | Lightweight, high strength | Implant devices, precision components |
| Aluminum Alloy | Excellent machinability | Medical equipment housings |
| Engineering Plastics | Electrical insulation, lightweight | Instrument components |
TiRapid supports machining of various metal and plastic materials and can provide material recommendations according to the functional requirements of medical products.
Selection of Precision Machining Technologies
Different medical components require different machining processes. Simple structures can be manufactured through CNC milling or turning, while complex curved surfaces and small structures are more suitable for five-axis machining or precision micromachining. For example, internal components of medical robots require machining from multiple directions to create complex structures, while parts used in miniature testing equipment focus more on dimensional accuracy and surface quality. TiRapid provides CNC machining, sheet metal fabrication, and 3D printing manufacturing solutions, allowing flexible selection of production methods according to different project stages.
Small-Batch Medical Product Manufacturing Support
The medical industry often requires product verification and functional testing, resulting in a strong demand for small-batch production. TiRapid supports manufacturing from single prototypes and small-batch production to large-scale manufacturing. Production methods can be adjusted according to different project stages, helping medical companies shorten development cycles and improve product testing efficiency.
Frequently Asked Questions
What Components Can Be Manufactured Through Medical Micromachining?
Medical micromachining can be applied to various precision components, including: Miniature medical equipment structural parts; Surgical instrument components; Internal components of testing equipment; Precision connectors for medical robots. Through CNC precision machining technology, complex structures and small-sized components can be manufactured with stable quality.
Can Prototype Machining Be Provided During the R&D Stage?
Yes. During the research and development stage of medical products, companies usually need to quickly produce prototypes for testing. TiRapid supports prototype machining and small-batch manufacturing. Customers only need to provide CAD files or design drawings, and the engineering team can perform manufacturing analysis, provide machining recommendations, and offer quotation support.
How Is the Quality of Medical Component Machining Ensured?
Quality control runs throughout the entire manufacturing process, including design evaluation, material confirmation, machining production, and dimensional inspection. TiRapid strictly follows ISO9001 quality management standards and improves component manufacturing stability through standardized production processes, providing reliable support for medical equipment manufacturing.
Medical industry component manufacturing has increasingly higher requirements, with small sizes, high precision, and complex structures becoming common demands. High-precision micromachining requires not only advanced equipment but also extensive engineering experience and a complete manufacturing process. TiRapid specializes in precision CNC machining, five-axis machining, sheet metal fabrication, and 3D printing manufacturing services, providing medical equipment companies with complete solutions from design optimization and prototype development to production delivery. Through free DFM reports, fast quotations, and professional engineering support, TiRapid helps customers complete medical product manufacturing more efficiently. Whether it involves medical instrument components, surgical equipment parts, or small-batch prototypes during the R&D stage, TiRapid can provide suitable machining solutions according to project requirements. After customers submit product drawings, the engineering team can quickly evaluate manufacturing feasibility and provide professional recommendations to help projects move smoothly into production.
Choosing TiRapid means not only obtaining high-precision medical components but also receiving complete manufacturing support. From product design to final delivery, TiRapid is committed to becoming a reliable precision manufacturing partner for the medical industry. Contact us today to receive a free DFM analysis and customized machining solution, making your medical product development more efficient and stable.
