Why Is the Breakage Rate of Micro-Diameter Milling Cutters (≤φ0.5 mm) So High?

Micro-diameter milling cutters with diameters no greater than φ0.5 mm are commonly used for machining precision molds, micro-grooves, thin-walled parts, medical components, and electronic structural parts. They can produce details that ordinary tools cannot handle, but they are also more likely to break suddenly during machining. The high breakage rate of micro-diameter tools is usually related to tool rigidity, toolpath design, clamping accuracy, spindle condition, and operating practices.

Get Free Quote

Why Are Micro-Diameter Milling Cutters Particularly Prone to Breakage?

Micro-diameter milling cutters have limited load-bearing capacity, so even minor errors can be magnified.

Insufficient Tool Rigidity

The smaller the tool diameter, the weaker its resistance to bending.

  • Excessive tool overhang amplifies cutting forces.
  • Toolholder runout causes periodic impacts at the tool tip.
  • Machine-tool vibration or unstable workpiece clamping may also be directly transmitted to the cutting edge.

Especially in deep-slot and deep-cavity CNC milling, it is not enough to consider only the tool diameter. The effective flute length and overhang ratio must also be evaluated comprehensively.

Cutting Load Changes Too Quickly

Micro-diameter milling cutters are most vulnerable to sudden tool engagement rather than stable, low-load cutting. When the tool enters a corner, enclosed slot, or area with excessive local stock, the actual contact area may increase instantly. Even if the feed rate remains unchanged, the cutting force can rise rapidly, eventually causing edge chipping or tool breakage.

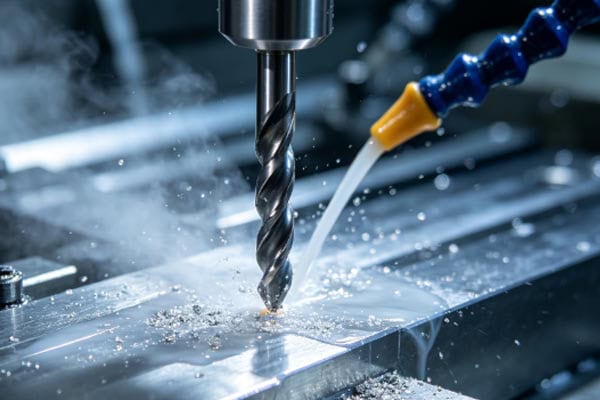

CNC machining center for metal drilling.

Which Machining Parameters Are Likely to Cause Tool Breakage?

Improper parameter settings are a common cause of micro-tool failure.

A Lower Feed Rate Is Not Always Safer

A feed rate that is too high increases cutting load, but a feed rate that is too low can also create problems.

  • The tool may fail to form chips effectively, resulting in friction.
  • Cutting heat may concentrate at the tool tip.
  • Once material adheres to the tool, the load on the cutting edge continues to increase.

Micro-diameter milling cutters require a suitable feed per tooth rather than simply reducing the feed rate.

Excessive Radial and Axial Depth of Cut

Because micro-diameter tools have relatively low rigidity, the depth of cut should be set appropriately according to the material, tool material, and toolpath type. Parameters for standard tools should not be applied directly.

  • Start with a small depth of cut, then adjust it based on cutting sound, spindle load, and surface quality.
  • Control the radial engagement to reduce lateral forces and vibration.
  • Set the axial depth of cut appropriately to prevent tool overload, wear, or edge chipping.
  • For carbide micro-tools, begin with a stable, small depth of cut and gradually increase machining efficiency.
  • Reduce the cutting load appropriately in corners, narrow slots, and complex cavity areas.
  • Conduct trial cuts to check dimensional accuracy, surface quality, tool wear, and machining stability.

Micro-diameter tools should be optimized gradually on the basis of stable machining. Avoid pursuing an excessively high material removal rate all at once.

Mismatch Between Spindle Speed and Tool

Insufficient spindle speed can result in inadequate cutting and tool compression, while excessive speed may cause temperature rise, wear, and coating failure. Actual parameters should also be adjusted according to material hardness, tool coating, cooling method, and the machine tool’s maximum spindle speed.

The face milling cutter head cuts the flat surface of the sheet metal over a large area.



Toolpath and Equipment Accuracy Are Equally Important

Even when the tool and parameters are selected correctly, poor toolpath planning or equipment condition can cause recurring tool breakage.

Avoid Direct Vertical Plunging Whenever Possible

Micro-diameter milling cutters are not suitable for sudden axial impacts.

  • Give priority to ramping into the material.
  • Use helical entry to reduce instantaneous load.
  • Avoid plunging directly into enclosed areas.
  • Allow the tool to enter the material gradually instead of engaging the entire flute at once.

A proper entry method can often reduce the breakage rate more effectively than simply adjusting the spindle speed.

Check Spindle Runout and Clamping Condition

When the tool diameter is only φ0.3 mm or φ0.5 mm, even slight runout may cause uneven loading, so clamping accuracy requires special attention. Key points include:

  • Check whether the toolholder is worn or deformed.
  • Ensure that the collet is clean, undamaged, and compatible with the tool.
  • Check whether chips, dust, or other foreign matter are present inside the spindle taper.
  • Ensure that the tool clamping length is appropriate, avoiding insufficient clamping or excessive tool extension.
  • Before clamping, clean the toolholder, collet, spindle taper, and tool surface to prevent foreign matter from causing tool misalignment.
  • During high-precision CNC milling, control spindle runout to avoid affecting micro-diameter tool life, machining stability, and surface quality.

Only by controlling clamping accuracy, spindle condition, and tool parameters simultaneously can the performance of micro-diameter tools be fully utilized.

Ensure Timely Chip Evacuation and Cooling

Chips are difficult to evacuate from micro-grooves and cavities, and recutting can expose the tool to secondary impacts. When machining aluminum alloys, special attention should be paid to preventing chip adhesion. When machining stainless steel and hard materials, cutting heat and built-up edge must be controlled. Air cooling, oil mist, or minimum-quantity lubrication should be selected according to the material and equipment conditions rather than relying solely on conventional coolant flushing.

How to Effectively Reduce the Breakage Rate of Micro-Diameter Milling Cutters

Reducing the breakage rate requires simultaneous improvements in tool selection, programming, and shop-floor management.

Select the Appropriate Tool Structure

Different workpieces should not use the same set of micro-diameter tools.

  • For aluminum alloys, choose tools with smoother chip evacuation.
  • For stainless steel and hardened steel, focus on cutting-edge strength and coating compatibility.
  • For deep-slot machining, evaluate necked-down designs and effective flute length.
  • For finishing, prioritize cutting-edge consistency and runout control.

Micro-diameter tools should be selected appropriately according to the workpiece material, machining structure, and process requirements.

Optimize Toolpath Transitions

Proper toolpath planning helps improve machining stability and part quality. Pay particular attention to the following:

  • Use arc transitions at corners to reduce cutting-load fluctuations.
  • Reduce the feed rate and depth of cut in thin-walled areas to prevent deformation and vibration.
  • Control the cutting width and depth in narrow slots to reduce tool load.
  • When stock is uneven, use layered machining to remove material gradually.
  • Divide the part into machining zones according to its structure and match each zone with suitable cutting parameters.
  • When using micro-diameter tools, control the load per cutting pass to reduce edge chipping and wear.

Proper toolpath planning can improve machining efficiency, extend tool life, and enhance part consistency.

Establish Trial-Cutting and Monitoring Procedures

When machining a new material or using a new tool for the first time, it is not recommended to apply limit parameters directly. First perform a short trial cut to observe spindle load, cutting sound, chip shape, and tool wear, then make gradual adjustments. During batch production, record the number of parts machined by each tool and the locations of tool breakage to determine whether the problem originates from the parameters, toolpath, or equipment.

Conclusion

The high breakage rate of micro-diameter milling cutters is not simply caused by their small size. More commonly, it results from insufficient rigidity, excessive runout, entry impacts, mismatched cutting parameters, and poor chip evacuation. Only by optimizing tool selection, clamping accuracy, toolpath design, cooling and chip evacuation, and machining monitoring together can tool-breakage losses be effectively reduced. TiRapid can provide more stable CNC milling solutions based on the material, part structure, and equipment conditions, helping companies improve the efficiency and yield of micro-machining.
