CNC Turning Precision Control and Cost Optimization Guide

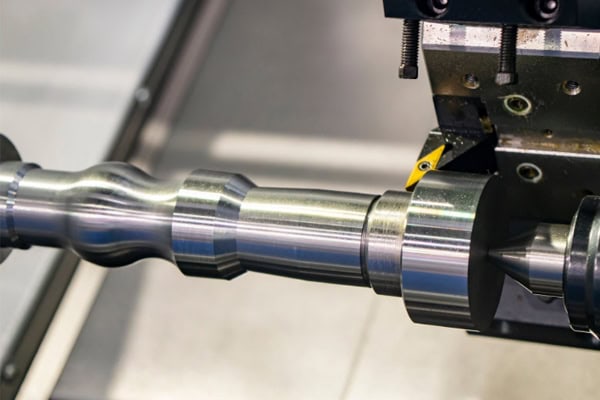

CNC turning plays a central role in mechanical manufacturing. Balancing high-precision machining with single-piece cost control is a primary focus for engineers and procurement decision-makers across industries. Minor adjustments in technical parameters directly dictate the final surface roughness, dimensional tolerances, and production cycle times of components.

Factors Influencing CNC Turning Precision

The actual machining precision of CNC lathes is constrained by machine hardware, physical tool characteristics, and the cutting environment. Eliminating cumulative errors can significantly enhance component consistency.

Machine Geometric Errors and Thermal Deformation

Parallelism of machine guide rails, spindle runout, and leadscrew backlash are fundamental causes of dimensional deviations. During prolonged high-speed cutting operations, friction between the headstock and feed mechanisms generates heat, leading to micron-level thermal expansion of structural components.

• Spindle Radial Runout: Axial and radial offsets during spindle rotation directly transfer to the workpiece, causing out-of-roundness. This requires mitigation through high-precision preloaded bearings and routine inspection and alignment.
• Thermal Balance Control: Temperature rises resulting from continuous machine operation alter the actual coordinates of the tool tip. Utilizing constant-temperature cooling systems to manage cutting fluid temperature reduces the impact of structural thermal deformation on axial dimensions.
• Repeat Positioning Accuracy: Cumulative errors in the servo drive train increase over usage time. Calibrating linear scales and servo feedback systems regularly compensates for backlash and ensures precise feed placement.

Controlling geometric errors and thermal drift serves as the primary defense for dimensional stability, laying a solid foundation for subsequent high-precision operations.

Tool Wear and Geometry Selection

Cutting tools undergo intense mechanical friction and high temperatures during machining. Tool nose radius wear alters the actual cutting path, leading to unintended dimensional drift.

• Optimization of Rake and Clearance Angles: Selecting appropriate tool geometry features substantially improves cutting behavior. Increasing the rake angle reduces cutting forces and minimizes thin-wall deformation, while an adequate clearance angle lessens friction between the tool flank and workpiece.
• Tool Nose Radius Compensation (G41/G42): When turning arcs or tapers, precise tool nose radius compensation must be specified to prevent over-cutting or under-cutting, ensuring complex profile dimensions meet drawing specifications.
• Coating Material Matching: Selecting specialized tool coatings based on substrate materials—such as TiAlN coatings for stainless steel and uncoated or diamond-coated inserts for aluminum alloys—minimizes built-up edge formation and extends tool life.

Selecting tool geometry parameters precisely and implementing systematic wear compensation significantly reduces scrap rates caused by tool degradation.

Cutting Parameter Optimization Strategies for CNC Turning

Setting proper cutting parameters directly governs machining efficiency and surface quality. A balanced combination of surface speed, feed rate, and depth of cut yields optimal machining conditions.

Relationship Between Cutting Speed and Feed Rate

Cutting speed (VC) and feed rate (F) exert a decisive influence on surface finish. Theoretical surface roughness is directly proportional to the square of the feed rate and inversely proportional to the tool nose radius.

Coolant Selection and Delivery Location

Cutting fluid functions not only to dissipate heat but also to evacuate chips and provide lubrication. Imprecise coolant delivery causes thermal cracking on cutting inserts.

• High-Pressure Coolant Technology: Conventional low-pressure coolant struggles to penetrate the vapor barrier formed in the cutting zone. High-pressure coolant exceeding 70 bar breaks long chips and extends tool life during deep-hole turning.
• Emulsion vs. Synthetic Fluid: Choosing appropriate coolant media according to machining intensity is vital. Heavy-duty cutting warrants emulsions with extreme-pressure additives, whereas finish turning benefits from highly heat-dissipating synthetic fluids.
• Targeting the Cutting Zone: Fluid flow direction dictates heat dissipation efficiency. Directing coolant precisely into the tool-chip interface prevents dry cutting and rapid insert wear.

Establishing a robust coolant filtration and targeted delivery mechanism serves as an effective strategy to harmonize workpiece surface quality with tooling costs.

Controlling Distortion in Complex Thin-Walled Turned Parts

Thin-walled components are highly susceptible to elastic and plastic deformation under the combined influence of clamping forces, cutting forces, and residual stress. Specialized processing techniques are required to suppress these effects.

Clamping Method Improvements and Specialized Fixtures

Standard three-jaw chucks readily induce triangular distortion in thin-walled cylindrical workpieces. Distributing force over a larger contact area provides an effective solution.

• Pie-Type Soft Jaws: Full-wrap clamping distributes concentrated clamping points over a wide area, converting point loading into uniform surface contact to prevent out-of-roundness.
• Hydraulic Expanding Mandrels: Thin-walled sleeve components are prone to cracking under uneven loading when machining outer diameters. Locating via the inner bore with expanding mandrels achieves uniform radial expansion, ensuring concentricity between inner and outer diameters.
• Overload Control of Hydraulic Clamping: Excessive clamping force causes rebound deformation after part release. Lowering hydraulic pressure combined with internal support rings increases workpiece rigidity, suppressing clamping distortion at the source.

Reconfiguring fixture geometries and optimizing clamping force distribution allows manufacturers to eliminate initial physical strain during part setup.

Process Route Splitting and Stress Relief

Rough machining releases large quantities of internal residual stress. Performing finish turning without prior stress relief causes dimensional shifts once the part is unclamped.

• Strict Separation of Rough and Finish Machining: Forcing single-pass manufacturing releases intense internal stress, leading to distortion. Leaving a 0.5 mm allowance after roughing and allowing the part to age naturally for over 24 hours or undergo stress-relief annealing stabilizes dimensions.
• Symmetrical Cutting Strategy: Unilateral force application induces bending. For thin-walled parts with symmetrical profiles, alternating cutting passes balances residual stress, ensuring accurate geometric shapes.
• High-Speed Light Cutting: Large depths of cut cause sharp increases in cutting forces. Utilizing high spindle speeds, shallow depths of cut, and small feed rates reduces mechanical forces acting upon delicate thin-walled structures.

Planning manufacturing steps systematically alongside stress relief methods provides a core solution for long-term dimensional stability in precision components.

Pathways to Lowering Per-Piece CNC Turning Costs

Cost reduction does not imply compromising quality; rather, it relies on raising automation levels, optimizing toolpaths, and extending tool life to minimize unproductive cycle time.

Automated Loading/Unloading and Unattended Manufacturing

Auxiliary non-cutting time (setup, tool setting, measurement) accounts for a high proportion of total production cycles. Integrating automation significantly boosts machine utilization.

• Bar Pullers and Bar Feeders: Manual stock loading consumes labor and interrupts production rhythms. Pairing bar feeders with turning centers enables continuous automatic bar processing, supporting lights-out night operations without operator intervention.
• Gantry Robot Loading: Manual loading introduces cycle variations and safety risks. For single disc or shaft components, gantry robots achieve sub-second loading, maintaining highly consistent production takt times while mitigating injury risks.
• In-Machine Tool Presetting and In-Process Inspection: Stopping machines for tool setting and off-machine measuring consumes valuable spindle cutting hours. Equipping machines with automatic tool setters and touch probes minimizes setup downtime and automatically compensates for tool wear.

Deploying automated equipment and intelligent measurement to replace manual operation serves as a primary driver for cost reduction and efficiency gains.

Program Optimization and Toolpath Reduction

Writing efficient NC code eliminates idle motion time, raising overall cutting efficiency.

• Optimizing Non-Cutting Retract Paths: Right-angle transitions create unnecessary deceleration delays. Utilizing arc-based lead-in and lead-out moves instead of right angles reduces axial acceleration/deceleration time, cumulatively shortening total cycle time per part.
• Application of Canned Cycles: Programming toolpaths line-by-line creates lengthy code that can overload control processing speed. Applying canned cycles such as G71, G72, and G73 simplifies program structure and speeds up controller execution.
• Simultaneous Multi-Tool Machining: Single-turret sequential cutting fails to utilize multi-axis machine capabilities fully. Twin-spindle, twin-turret turning centers process both ends of a part concurrently, doubling output and reducing equipment depreciation costs.

Eliminating time redundancies within NC programs while leveraging multi-axis synchronization compresses total manufacturing cycle times down to the finest detail.
