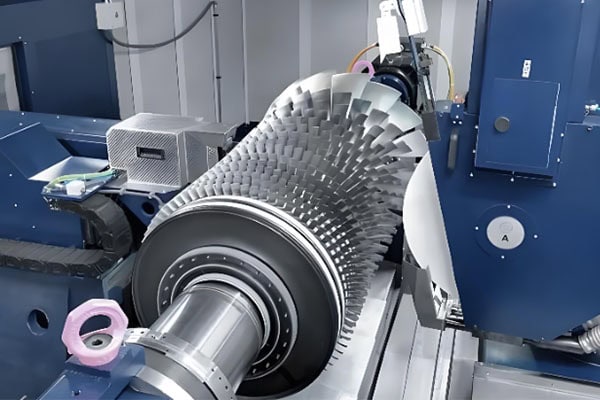

Aero engines are the core power systems of aircraft and their components operate under high temperatures, high pressure, high-speed rotation, and complex mechanical loads. As a result, aerospace engine parts machining requires strict control over material properties, dimensional accuracy, surface finish, and structural reliability.Engine blades, housings, combustion chamber components, brackets, connectors, and precision shafts often feature complex curved surfaces, deep cavities, thin-wall sections, and precision holes. These manufacturing challenges require high-precision CNC equipment, 5-axis machining technology, optimized toolpaths, and comprehensive quality inspection.TiRapid provides customized CNC machining solutions for aerospace engine components based on part drawings, materials, dimensions, tolerances, and production requirements.
Get 20% offf
Your First Order
Need custom metal and plastic parts?
What Are the Main Challenges of Aerospace Engine Parts Machining?
High-Performance Materials Are Difficult to Machine
Aerospace engine components are commonly manufactured from titanium alloys, nickel-based alloys, stainless steel, high-strength aluminum alloys, and other high-performance metals. These materials provide excellent strength, heat resistance, and corrosion resistance, but some are challenging to machine.
Titanium alloys and nickel-based superalloys, in particular, can generate significant cutting heat during machining. Excessive heat and improper cutting parameters can accelerate tool wear and negatively affect dimensional accuracy and surface quality.
Therefore, cutting tools, cutting speeds, feed rates, cutting depths, and cooling methods need to be selected according to the specific material.
Complex Geometries Increase Machining Difficulty
Aerospace engine components often contain complex three-dimensional surfaces and multi-angle structures. For example, engine blades require precise machining of continuously changing curved surfaces, while engine housings may contain deep cavities, thin walls, and multiple precision holes.
Conventional 3-axis machining may require multiple setups. Repeated workholding and repositioning can increase positioning errors. 5-axis CNC machining allows the cutting tool to approach the workpiece from multiple directions, reducing the number of setups and improving the efficiency of complex surface machining.
Tight Tolerances and Consistency Are Essential
Aerospace engine components must be precisely assembled with other parts. Critical dimensions, hole positions, profiles, and surface roughness therefore need to remain within strict specifications.
For production batches, manufacturers must not only ensure the quality of individual components but also maintain dimensional consistency between different production batches.
Aerospace Engine Parts CNC Machining Solutions
Conduct DFM Analysis Before Machining
Before production begins, the 3D model and 2D engineering drawings should be carefully analyzed. Important factors include material, wall thickness, corner radii, hole diameter, machining depth, and dimensional tolerances.
Through DFM analysis, potential machining difficulties can be identified in advance. This makes it possible to optimize the workholding method, machining sequence, and tooling strategy before production starts.
Use 5-Axis CNC Machining for Complex Surfaces
For aerospace engine blades, complex housings, and irregular structural components, 5-axis CNC machining provides greater flexibility in tool movement.
By continuously adjusting the tool orientation, manufacturers can improve cutting conditions on complex surfaces while reducing positioning errors caused by multiple setups. For engine components requiring precise profile control, multi-axis machining can provide a good balance between machining efficiency and surface quality.
Control Material Removal in Multiple Stages
Aerospace engine components often require substantial material removal and should not necessarily be machined through heavy cutting in a single operation.
A suitable process can include rough machining, semi-finishing, and finishing. Rough machining removes excess material efficiently, semi-finishing establishes the near-final geometry, and finishing focuses on final dimensions, tolerances, and surface quality.
A staged machining strategy can reduce the effects of cutting forces and heat while improving overall dimensional stability.
Common Aerospace Engine Parts and Machining Processes
Engine Component
Common Materials
Main Machining Challenges
Recommended Process
Engine Blades
Titanium Alloys, Superalloys
Complex surfaces, thin walls, surface finish
5-Axis CNC Machining
Engine Housings
Aluminum Alloys, Titanium Alloys
Deep cavities, thin walls, multiple holes
CNC Milling / 5-Axis Machining
Combustion Chamber Components
Nickel-Based Alloys, Stainless Steel
Heat-resistant materials, tool wear
Precision CNC Machining
Engine Brackets
Aluminum Alloys, Titanium Alloys
Complex profiles, hole accuracy
CNC Milling
Precision Shafts
Stainless Steel, Titanium Alloys
Concentricity, dimensional tolerances
CNC Turning
Connectors
Aluminum, Stainless Steel
Small dimensions, precision holes
Precision CNC Machining
How to Improve Aerospace Engine Parts Machining Accuracy?
Optimize Cutting Tools and Machining Parameters
Different aerospace engine materials require different cutting tools and machining parameters. For titanium alloys and nickel-based superalloys, controlling cutting heat and tool wear is particularly important. For aluminum alloys, chip evacuation and surface finish should receive greater attention.
Optimized toolpaths can also reduce unnecessary cutting movements, excessive material removal, and vibration caused by abrupt changes in cutting direction.
Use Stable Workholding Method
Thin-wall sections and complex structures in engine components may have relatively low rigidity. Excessive clamping force can cause deformation and affect dimensional accuracy.
The workholding system should therefore be designed according to the component geometry. Customized fixtures and auxiliary supports can be used where necessary to improve stability during machining.
Perform Precision Inspection After Machining
After aerospace engine components are machined, critical dimensions and geometric characteristics should be inspected.Depending on the component requirements, inspection may include hole diameter, positional accuracy, flatness, profile tolerance, concentricity, and surface roughness.
Combining process control with final inspection helps improve production consistency and reduces the risk of nonconforming parts entering the assembly process.
TiRapid Aerospace Engine Parts Machining Advantages
TiRapid provides CNC machining services for precision manufacturing applications and can develop customized machining strategies according to aerospace engine component materials, geometry, dimensions, tolerances, and production volumes.
With processes including CNC milling, CNC turning, and 5-axis CNC machining, TiRapid can accommodate complex curved surfaces, deep cavities, multi-hole structures, and irregular geometries.
Engine blades, housings, brackets, connectors, and other precision components can be manufactured using appropriate machining processes based on their individual structural requirements.
From drawing analysis and process planning to machining, surface finishing, and quality inspection, a well-organized manufacturing workflow helps balance dimensional accuracy, surface quality, and batch consistency.
Aerospace engine parts machining requires strict control over materials, equipment, manufacturing processes, and quality inspection. When machining difficult materials such as titanium alloys and nickel-based superalloys, as well as complex components such as engine blades and housings, conventional machining methods may struggle to achieve both precision and efficiency.Through DFM analysis, optimized workholding, appropriate cutting tools and parameters, 5-axis CNC machining, and comprehensive quality inspection, manufacturers can establish a more stable aerospace engine precision machining solution.TiRapid can provide customized CNC machining support according to customer drawings and specific application requirements, delivering reliable precision metal component manufacturing solutions for aerospace engines and other advanced aerospace equipment.
