Pins are indispensable fasteners in mechanical engineering. They are used to fix, position, connect and rotate components to ensure the stability and reliability of mechanical devices. Pins can be divided into many types according to their structure and purpose to adapt to different application scenarios. I will introduce 10 common types of pins in detail , including their characteristics, uses and applicable scenarios, to help you choose the right pins to optimize the accuracy and efficiency of mechanical assembly.
What Is A Pin?

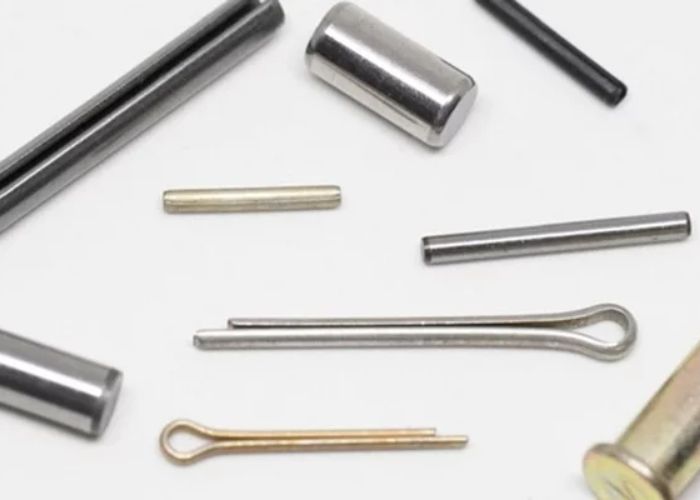

Pins are a common mechanical fastener, usually designed in a cylindrical or conical shape, and are inserted into pre-drilled holes for fixing, positioning, connecting or transmitting motion. Pins are widely used in mechanical assembly, precision manufacturing, aerospace, automotive industry and building structures. Compared with fasteners such as bolts and rivets, pins are usually easier to install and remove, while providing higher shear resistance and reusability.
Pins can be divided into semi-permanent pins and quick-release pins :
- Semi-Permanent Pins : Installation and removal require tools or external pressure, suitable for long-term fixed mechanical structures.
- Quick Release Pins : Can be removed and replaced with simple manual operation, ideal for applications requiring frequent adjustments or component replacements.
Pins are usually made of stainless steel, carbon steel, alloy steel, aluminum, copper and titanium alloys to provide different degrees of strength, corrosion resistance and wear resistance. Its core function is to prevent components from shifting, loosening or falling off , ensuring the stability and reliability of mechanical structures. They rely on friction, spring tension or locking mechanisms to remain fixed, and can be designed into different types according to different application requirements.

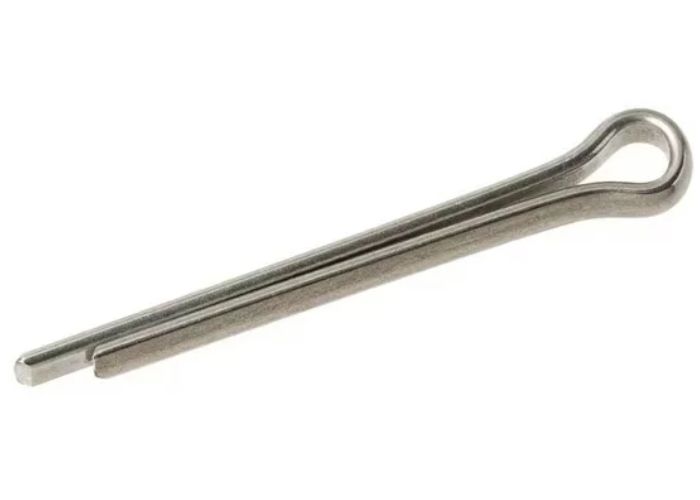

Split Pin
In mechanical structures, split pins are a cost-effective anti-loosening fastener, widely used in nuts, bolts and shaft components that require additional fixation. They are easy to install and do not require complex tools. They can be fixed by simply inserting and bending the two ends.
In addition, cotter pins can withstand shear stresses up to 69 MPa (10,000 psi)**, and excel in high vibration and dynamic load environments. The reliability of cotter pins makes them a key fastening element in various industries, especially in applications with high safety requirements, where they can effectively prevent mechanical parts from loosening or shifting during use.
Features:
- of mild steel or stainless steel , it combines good toughness and corrosion resistance.
- It has a U-shaped structure with a circular head at one end and two bendable legs at the other end.
- By bending the legs after insertion into the matching holes, a physical lock is achieved without the need for additional threads or welding.
- It is suitable for connections that need to be stably fixed for a long time and adapts to complex working environments such as high vibration and impact loads.
Use:
- Automobile Manufacturing : In the wheel bearings , brake systems and suspension systems of automobiles , they are used to fix bearing nuts to prevent loosening and improve safety.
- Agricultural Machinery : used in agricultural equipment such as tractors and harvesters to ensure stable operation of parts in harsh environments and increase the service life of equipment.
- Aerospace : Ensure the long-term reliability and safety of key components at the joints of aircraft engines, landing gear and control systems to avoid serious accidents caused by looseness.
- Marine Engineering : Used to fix steering gear components, deck machinery and propulsion systems to ensure normal operation in humid environments for a long time.
- Railway And Heavy Equipment : Used to fix rotating joints, shafts and supports of rail transportation and heavy machinery to improve mechanical reliability and service life.
Bayonet Pin
The bayonet pin is a pin that can be quickly connected and removed . It is mainly fixed by a spring lock or a quick release structure and can be manually operated without additional tools. Compared with traditional fasteners, the bayonet pin is easy to install, simple to disassemble, safe and stable , and is widely used in portable devices, outdoor tools, engineering machinery, aviation and sporting goods .
Features:
- One-Button Locking Structure : automatically locks after insertion, no additional fastening tools are required, saving installation time.
- High-Strength Material : usually 304/316 stainless steel, galvanized carbon steel, titanium alloy , with a tensile strength of 800-1500MPa .
- Strong Corrosion Resistance : Especially suitable for outdoor equipment, marine applications and humid environments to prevent oxidation corrosion.
- Reusable : Unlike disposable pins, snap pins can be disassembled and assembled repeatedly , making them suitable for equipment that requires frequent replacement or adjustment.
- Adapt To Various Apertures : Provide standardized and customized specifications to meet the needs of different mechanical structures.
Use:
- Outdoor Equipment : suitable for folding tables and chairs, mountaineering equipment, camping equipment , easy to assemble and disassemble quickly.
- Construction Machinery : used for excavator hinge points, heavy lifting equipment, and construction hoists , providing a safe and reliable fixing method.
- Sports Equipment : commonly found in fitness equipment, adjustable dumbbells, and cycling accessories , ensuring equipment stability and user safety.
- Aerospace : Used in aircraft door locking, quick connection systems, and maintenance and repair equipment to improve operational efficiency.
- Automobile And Rail Transportation : Applicable to bus safety doors, rail train maintenance devices, public transportation safety locks to enhance structural safety.
Insurance Pin
The safety pin is a high-security, quick-locking mechanical pin , mainly used for connecting equipment that requires additional safety protection. Its structure includes a high-strength pin body and a spring lock coil to ensure that it can remain fixed even when subjected to strong vibration or impact, preventing the equipment from accidentally falling off due to loosening.
Safety pins are usually made of stainless steel, carbon steel or aluminum alloy to improve their corrosion resistance and durability, and can maintain long-term stability in harsh environments.
Features:
- of high-strength stainless steel or carbon steel , with a tensile strength of 600-1200 MPa , suitable for high-load applications.
- The spring locking mechanism automatically fastens after insertion to prevent loosening due to vibration or external force.
- Strong corrosion resistance , common materials such as 316 stainless steel are suitable for marine, high humidity or high salt environments.
- Easy to install and disassemble, quick locking and releasing without additional tools , improving equipment operation efficiency.
- Optional galvanizing, anodizing and coating treatments are available to increase wear resistance and corrosion resistance and extend service life.
Use:
- Aerospace : Used to fix aircraft landing gear and control system components to improve the safety of aircraft in high vibration and high impact environments.
- Marine Equipment : widely used in ship deck equipment, offshore drilling platforms, and offshore wind power facilities to ensure long-term and stable operation of equipment in the marine environment.
- Industrial Machinery : used to connect key components such as pressure vessels, hydraulic systems, and high-load mechanical components to prevent system failure due to loose components.
- Agricultural And Construction Equipment : Suitable for applications such as tractor attachments and excavator connections that require frequent replacement and fixation, improving the convenience of equipment maintenance.
- Military Equipment : used in high-security applications such as weapon systems, radar equipment, combat vehicles , etc. to ensure the stability and reliability of the equipment.
Tapered Pin
The conical pin is a high-precision positioning and fixing mechanical pin used to ensure the precise alignment and stability of parts. Its structural characteristics are narrow at one end and wide at the other end , with a standard taper of 1:50 or 1:48 , which can achieve a firm connection through friction.
Tapered pins are usually made of carbon steel, alloy steel or stainless steel , and the surface is quenched, galvanized and phosphated to improve its wear resistance and corrosion resistance. Compared with pins of the same diameter, tapered pins can provide a stronger mechanical locking effect and maintain high stability after long-term use.
Features:
- Designed with **standard taper (1:50 or 1:48)**, it creates a tight connection through friction, eliminating the need for additional fasteners.
- After being inserted into the pre-drilled tapered hole, high-precision positioning can be achieved , and the error can be controlled within **±0.005mm**.
- The materials can be selected from hardened alloy steel, stainless steel, and copper alloy to ensure high durability in different environments.
- Suitable for high load applications, the shear strength can reach 700-1500 MPa , meeting the needs of heavy machinery.
- After precision grinding and heat treatment , it can effectively resist loosening and wear and extend service life.
Use:
- Precision Machinery Assembly : In machine tools and precision instruments, it is used to ensure high-precision alignment of components, reduce assembly errors, and improve equipment stability.
- Mold Manufacturing : used to fix mold components to ensure that parts will not be misaligned under high temperature and high pressure environments, thereby improving production accuracy.
- Automobile And Rail Transportation : Widely used in automobile suspension systems, engine components and train connection components to ensure the stability of parts during high-speed operation.
- Aerospace And Military Equipment : used to fix high-precision components, such as satellite structures and rocket nozzle adjustment devices, to improve system safety and reliability.
- Heavy Machinery And Bridge Engineering : used in large steel structures, cranes, wind turbines , etc., where high-strength connections are required.
L-Handle Pin
The L-Handle Pin is a quick-operation mechanical pin that is equipped with an L-shaped handle, allowing it to be installed and removed manually without the need for additional tools. This pin is designed for mechanical parts that require frequent adjustment and fixation, and performs particularly well in applications that require flexible adjustment and quick replacement .
L-type handle pins are usually made of stainless steel, carbon steel or alloy steel , which can withstand high loads and can be zinc-plated, nickel-plated or phosphated to enhance corrosion resistance and service life.
Features:
- The L-shaped Handle Design allows one-handed operation and quick assembly and disassembly without tools, making operation more convenient.
- Self-Locking Mechanism prevents the pin from accidentally slipping out, enhancing safety and reliability.
- Adjustable Length , suitable for connecting components of different thicknesses, improving adaptability.
- Made Of High-Strength Material , the tensile strength can reach 800-1200 MPa , able to withstand high- load environments.
- Various Surface Treatments , such as galvanizing, nickel plating, phosphating, etc., can improve corrosion resistance and are suitable for outdoor or harsh environments.
Use:
- Agricultural Machinery : used for quick installation and disassembly of tractor accessories, seeders, harvesters and other equipment to improve work efficiency.
- Construction Equipment : Suitable for the connection of scaffolding, formwork support systems, and crane components to improve operational flexibility on the construction site.
- Transport Equipment : Used to secure moving parts and improve loading stability in loading and unloading systems of trucks , trailers, and freight vehicles.
- Industrial Automation : used for modular assembly of robot systems and assembly line equipment to make equipment adjustment more flexible.
- Heavy Machinery : Provide reliable connections in high-load scenarios such as mining equipment and drilling equipment to ensure safe operation.

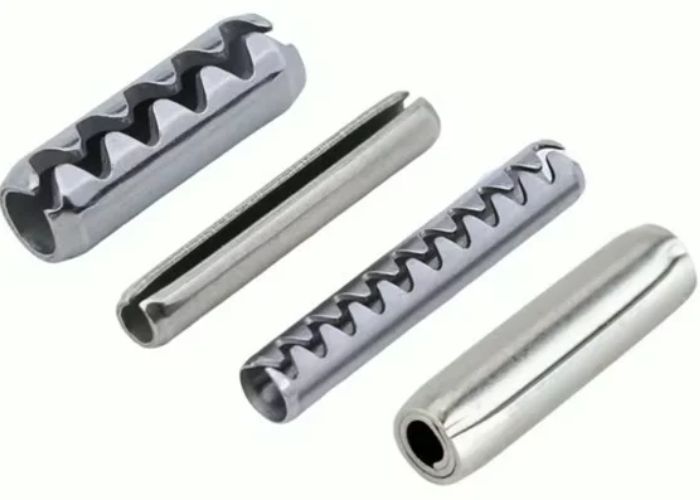

Spring Pin
Spring pins are self-locking mechanical pins widely used in fixing and alignment applications in high vibration environments. Their unique structure enables them to generate elastic expansion force when inserted into a hole slightly smaller than their own diameter, thereby providing a tight friction fixation. Spring pins are usually made of high carbon steel, stainless steel or alloy steel , with a shear strength of up to 700-1200 MPa , suitable for high-strength connection requirements.
In addition, the spring pins require no additional bolts or welding , making them easy to install and disassemble, thus improving assembly efficiency.
Features:
- of high carbon steel or stainless steel , it combines high strength and corrosion resistance to ensure stability for long-term use.
- by roll forming or stamping , and the surface can be galvanized, nickel-plated or phosphating to improve wear resistance and corrosion resistance.
- The self-locking structure automatically expands after insertion and maintains a stable fixation without the need for additional fasteners.
- Suitable for high vibration environments, can withstand repeated shock loads , and effectively prevent mechanical components from loosening or misalignment.
- The diameter tolerance is precise, up to **±0.005mm**, ensuring high alignment accuracy of components.
Use:
- Automobile Manufacturing : widely used in engine components, suspension systems, brake pedals and other parts that need to withstand high vibration to improve automobile safety.
- Electronic Equipment : used for PCB circuit board fixing , precision connectors , sensor components , etc., providing high-precision connections.
- Industrial machinery : used for the assembly of machine tools, hydraulic devices, and robot components to ensure they remain tight under high-frequency motion.
- Furniture Manufacturing : It is used to connect frame structures in modern furniture splicing , enhance the stability of furniture, and facilitate assembly and disassembly.
- Aerospace : Used in aircraft control systems, instrumentation, and landing gear components to ensure high reliability and impact resistance of components.
Fork Pin
A fork pin is a mechanical pin used for flexible connection . Its structure includes a pin head and a pin hole , and is usually used with a cotter pin or a wire lock pin. Compared with other types of pins, fork pins are more flexible and are suitable for applications that require rotating, hinged or detachable connections .
Fork pins are usually made of carbon steel, stainless steel, alloy steel or brass , and can be galvanized, electrophoretically coated, black-oxidized, etc. to improve wear resistance and corrosion resistance.
Features:
- The Head Design Provides Rotation Space , which is suitable for articulated connection, so that the parts can move freely within a certain angle.
- It Is Highly Removable and can be easily installed and removed when used with a cotter pin or a safety pin, thus improving maintenance convenience.
- It Has Wide Adaptability and is suitable for scenarios with low precision but requiring flexible connection to meet the needs of different devices.
- The Shear Strength Is High , reaching 500-1000 MPa , and can withstand large mechanical loads to ensure a stable connection.
- There Are Rich Material Choices , and different materials can be selected according to the working environment , such as stainless steel for humid environments and carbon steel for high-strength applications .
Use:
- Construction Industry : used to connect steel structure components, scaffolding, and lifting devices to improve construction flexibility and stability.
- Automobile Manufacturing : used to connect suspension systems, brake mechanisms, door hinges and other components to improve the movement coordination of the vehicle.
- Shipbuilding : Widely used in ship deck equipment and winch systems to ensure stable operation in high-intensity environments at sea.
- Mechanical Equipment : Rotatable parts used in agricultural machinery and industrial equipment, such as articulated connections of hydraulic cylinders, to improve operational flexibility.
- Aerospace : Used in aircraft landing gear, rudder control systems and other key components that require detachable but stable connections to improve safety and durability.
Positioning Pin
A dowel pin is a quick-fix pin with a spring ball or locking mechanism that automatically locks after being inserted into a hole, ensuring that the pin will not come loose easily. This type of pin is usually made of stainless steel, carbon steel or alloy steel , with good wear resistance and tensile strength, and can adapt to high-frequency assembly and disassembly needs.
the self-locking function of the locating pin makes it extremely advantageous in scenarios where quick assembly, adjustment or replacement of parts is required .
Features:
- Self-locking Mechanism : built-in spring ball or detent design, automatically locks after insertion into the hole, improving safety and operating efficiency.
- High-Frequency Disassembly And Assembly Capability : suitable for mechanical parts that need to be frequently replaced or adjusted, reducing assembly time.
- High-Strength Material : Shear strength can reach 600-1000 MPa , suitable for high- load environments.
- Corrosion-Resistant Treatment : Surface treatments such as galvanizing, phosphating, and nickel plating are used to increase the service life in humid or corrosive environments.
- A Variety Of Size Options : Customized designs can be provided according to different hole diameters and installation requirements to improve adaptability.
Use:
- Industrial Tools : used in various fixtures, positioning devices, and tooling equipment to ensure processing accuracy and repeatability.
- Mechanical Equipment : suitable for machine tool accessories, assembly tables, and robot modular assembly to improve production efficiency.
- Aerospace : Used in aircraft ground maintenance equipment and door fixtures to ensure fast assembly and disassembly.
- Construction Machinery : Suitable for lifting equipment and tower crane accessories to ensure safe connection and prevent loosening.
- Medical Equipment : Used in adjustable operating tables and medical instrument stands to provide stable connection and adjustment functions.
Axis Pin
Axle pins are pins used to connect and secure mechanical equipment , often used in trailers, agricultural equipment and transport machinery to ensure stability under high loads and movement. Axle pins are usually made of carbon steel, stainless steel or alloy steel , and have a safety locking device to prevent accidental fall off.
Compared with other types of pins, shaft pins have stronger load-bearing capacity and are particularly suitable for mechanical connections that need to be fixed for a long time.
Features:
- High Strength : can withstand axial loads up to 5000-8000 N , suitable for large-tonnage equipment.
- Safety Locking Device : usually with a cotter pin, R-shaped buckle or spring buckle to prevent loosening and falling off.
- Strong Weather Resistance : The surface is galvanized or electrophoretically treated to enhance corrosion resistance in outdoor environments.
- Wide Range Of Applications : Suitable for most agricultural, construction and transportation machinery, ensuring reliable operation of the equipment.
- Standardized design : Complies with international standards such as ISO 1234, ANSI B18.8.1 , and is suitable for global industrial applications.
Use:
- Agricultural Machinery : used to fix plows, seeders, and tractor accessories to improve equipment connection stability.
- Transportation Equipment : Widely used in connection systems of trucks, trailers and trailers to ensure transportation safety.
- Construction Machinery : Suitable for fixing parts of tower cranes, concrete mixers and other equipment to improve operation reliability.
- Mining Equipment : used as connection devices for mining transport vehicles and drilling equipment to ensure mechanical stability in extreme environments.
- Port logistics : used for cranes and cargo handling equipment to ensure the safe fixation of machinery during loading and unloading.
Slot Pin
A slot pin is a fixed position pin with a longitudinal groove that provides a stable mechanical connection by increasing friction and interference fit. These pins are usually made of carbon steel, stainless steel or alloy steel and are hardened to increase tensile strength and wear resistance.
Compared with ordinary cylindrical pins, the groove structure of the slot pin can not only enhance the fixing effect , but also improve the vibration resistance , which is particularly suitable for rotating parts, gear systems and high-precision positioning devices .
Features:
- Longitudinal Groove Design : increases surface friction, improves the bite force with the hole wall, and prevents loosening.
- Precision Manufacturing : diameter tolerance can reach **±0.01mm**, suitable for high-precision assembly needs.
- High-Strength Material : Made of alloy steel or stainless steel, with shear strength up to 800-1200 MPa .
- Wear Resistance : After hardening treatment, the service life is increased and it is suitable for high-frequency moving parts.
- Suitable For Interference Fit : no additional fasteners are required after installation to achieve a reliable fixation.
Use:
- Rotating Parts Fixing : used for bearings, connecting rod mechanisms, and rotating drive devices to ensure stable operation of components.
- Gear Transmission System : widely used in precision reducers, gear boxes, and speed change mechanisms to prevent axial slippage.
- Positioning Device : used in machine tools, automation equipment, and precision instruments to ensure the precise position of components.
- Applications In Vibration Environments : Suitable for engines, compressors, and conveying systems to resist the effects of mechanical vibration.
- Aerospace Field : used for high-strength connecting parts to improve impact resistance and fatigue resistance.
FAQs
What Is A Pin?
A pin is a fastener used for fixing, connecting, positioning and transmitting motion . It is usually cylindrical or conical and provides a stable connection after being inserted into a pre-drilled hole. Compared with bolts, pins have high shear strength (up to 1200 MPa) and are suitable for high load conditions.
What Are The Main Types Of Pins?
There are many types of pins, including cotter pins, dowel pins, spring pins, wire lock pins, lynch pins, clevis pins and taper pins. These pins are suitable for different mechanical applications, such as high-strength fixation, detachable connections, rotating parts locking , etc. Choosing the right pin can improve assembly accuracy (±0.002mm) and reduce maintenance costs.
How To Choose The Right Type Of Pin?
When choosing a pin, I usually consider the load requirements, working environment, ease of assembly and disassembly, and precision requirements . For high shear force applications (such as building structures), choose cylindrical pins or tapered pins . For scenes that require quick assembly and disassembly (such as agricultural machinery), use split locking pins or safety pins . For high-precision equipment (such as CNC machine tools), use interference fit locating pins .
What Materials Are Pins Usually Made Of?
Common materials for pins include carbon steel (shear strength up to 800 MPa), stainless steel (corrosion resistance), alloy steel (high strength and high wear resistance), aluminum (lightweight requirements), copper (electrical connection) and titanium alloy (high temperature resistance and high strength, tensile strength up to 1200 MPa) . Different application scenarios have specific requirements for materials. For example, aerospace and medical equipment usually use titanium alloys , while outdoor machinery prefers galvanized carbon steel or stainless steel to prevent rust.
What Are The Typical Applications Of Pins In Mechanical Engineering?
Pins are widely used in automotive manufacturing (fixing wheels, suspension systems), aerospace (positioning engine components), industrial equipment (fixing machine tool guides), medical devices (fixing joint implants), and construction engineering (connecting steel structures).
Conclusion
Pins are important fasteners in mechanical engineering, providing a variety of connection and fixing methods. Choosing the right type of pin can not only improve the stability and reliability of mechanical equipment, but also optimize assembly efficiency and service life. If you need customized pins or further consultation, please contact a professional fastener supplier to ensure that your application needs are best met.
