Industrial robots are widely used in automated production, intelligent assembly, precision handling, and flexible manufacturing. As a key component of the robot end effector, robot gripper fixtures directly affect gripping accuracy, operational stability, and production efficiency. With the continuous development of intelligent manufacturing, robot applications are expanding rapidly, creating higher requirements for gripper fixture structural strength, dimensional accuracy, weight control, and long-term operational reliability.
The precision manufacturing solution for robot gripper fixtures uses advanced CNC machining technology to produce customized components according to robot models, gripping targets, working environments, and motion requirements. Through CNC milling, precision turning, multi-axis machining, and strict quality inspection processes, manufacturers can produce gripper bodies, connection flanges, positioning components, movable joints, mounting bases, and specialized gripping structures. This solution meets the requirements of automated production systems for high precision, excellent stability, and fast response, providing reliable component support for robotic systems.

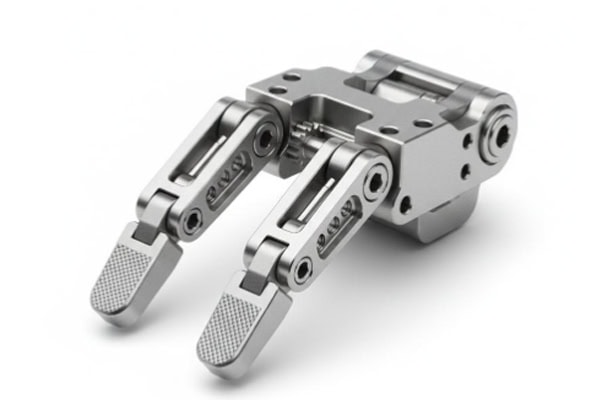

Advantages and Manufacturing Process of CNC Precision Manufacturing for Robot Gripper Fixtures
Robot gripper fixtures must maintain stable performance under high-speed movement and repetitive operation conditions. The fitting accuracy between components directly affects gripping performance. CNC precision machining uses digitally controlled programs to guide tool movements, enabling the production of complex structures while maintaining consistent dimensions. Compared with traditional machining methods, CNC manufacturing is more suitable for robot fixtures with complex designs, high accuracy requirements, and customized production needs.
CNC Machining Improves Manufacturing Accuracy of Robot Gripper Fixtures
Robot grippers usually contain multiple connection structures and moving components that require accurate positioning and smooth operation. High-precision CNC machining effectively controls dimensional errors and improves robot operating stability.
| Component Type | CNC Machining Features | Application Value |
| Gripper body | High-precision surface machining | Improves gripping stability |
| Connection flange | Precision hole machining | Ensures robot installation accuracy |
| Moving joint | High-precision shaft and hole machining | Enhances movement flexibility |
| Positioning components | Micron-level dimensional control | Improves repeat positioning accuracy |
Through optimized machining processes, robot gripper fixtures can meet different production requirements and improve the efficiency of automated equipment.
CNC Manufacturing Process for Robot Gripper Fixtures
Robot gripper fixtures are usually customized according to product shapes, load requirements, and production processes. Different applications require different machining solutions. A complete manufacturing process improves component quality and shortens product development cycles.
The manufacturing process includes:
- Product Design Confirmation: Confirm component structures based on robot models, installation methods, and gripping requirements.
- Material Selection Planning: Select suitable materials according to load requirements, operating environments, and weight limitations.
- Precision CNC Machining: Use machining centers to complete milling, drilling, tapping, and complex surface processing.
- Quality Inspection Control: Verify dimensional accuracy through coordinate measuring machines, precision measuring tools, and surface inspection equipment.
A standardized manufacturing process ensures stable delivery of robot fixture components and meets the needs of different automation projects.
Common Materials and Performance Characteristics of Robot Gripper Fixtures
Robot fixtures need to balance strength, weight, and durability. Different materials are suitable for different working environments. Proper material selection improves the performance of robotic end effectors.
| Material Type | Performance Characteristics | Suitable Components |
| Aluminum Alloy | Lightweight and easy to machine | Gripper bodies and brackets |
| Stainless Steel | High strength and corrosion resistance | Heavy-duty gripping structures |
| Alloy Steel | Wear resistance and high load capacity | Transmission components |
| Engineering Plastic | Lightweight and electrically insulating | Protective gripping parts |
Combined with CNC precision machining technology, these materials can be used to manufacture lightweight, strong, and durable robot gripper fixtures suitable for various industrial environments.

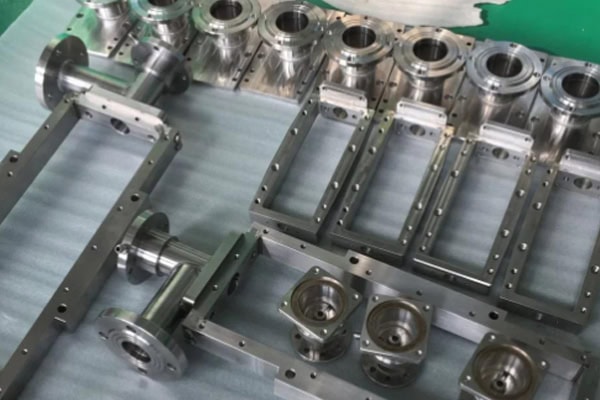

Application Scenarios and Performance Characteristics of Robot Gripper Fixtures
Robot gripper fixtures are widely used in automotive manufacturing, electronic assembly, mechanical processing, logistics handling, and intelligent warehousing. Different production environments require different fixture structures, gripping methods, and service life standards. Customized CNC manufacturing provides solutions based on actual application requirements.
Application Scenarios of Robot Gripper Fixtures
With the continuous upgrade of automated production, robots need to handle products with different shapes, weights, and materials. Precision-manufactured gripper fixtures improve production flexibility and automation capability.
Common application scenarios include:
- Automotive Component Manufacturing: Used for handling and assembling engine parts, body structures, and other components to improve production efficiency.
- Electronic Product Manufacturing: Meets precision gripping requirements for small electronic components and reduces manual operation errors.
- Machining Automation: Works with machine tools for automatic loading and unloading, improving equipment utilization.
- Intelligent Warehousing Systems: Enables automated sorting and transportation of different products to improve logistics efficiency.
Customized robot fixtures can adjust gripping methods according to product characteristics and improve the flexibility of automated production lines.
Functional Features of Robot Gripper Fixtures
Robot gripper fixtures not only perform gripping operations but also ensure production stability and safety. Precision CNC manufacturing improves the overall performance of fixtures.
Key functions include:
- Improved Gripping Stability: Precise structural design reduces the risk of product slipping.
- Enhanced Positioning Capability: High-accuracy machining improves robot repeat positioning performance.
- Support for Complex Workpieces: Customized gripping structures can be designed according to product shapes.
- Reduced Equipment Wear: High-quality materials and precision machining extend service life.
- Adaptation to Automated Production: Supports high-speed continuous operation environments.
High-performance robot gripper fixtures improve automation levels and enhance equipment reliability.
Performance Reference of Robot Gripper Fixtures
Robot fixtures operate under frequent movement conditions and require excellent mechanical performance and machining accuracy. CNC manufacturing meets the precision requirements of industrial robot components.
| Performance Indicator | CNC Manufacturing Capability | Application Effect |
| Dimensional Accuracy | High-precision tolerance control | Improves installation compatibility |
| Structural Strength | Supports high-strength materials | Meets heavy-load applications |
| Surface Quality | Precision machining treatment | Reduces movement friction |
| Machining Consistency | Digital production control | Ensures batch stability |
Stable manufacturing performance enables robotic systems to achieve long-term and efficient operation while improving automated production quality.
Development Trends of Precision Manufacturing for Robot Gripper Fixtures
With the continuous advancement of intelligent manufacturing technologies, robot applications are expanding rapidly. Gripper fixture manufacturing is developing toward lightweight design, higher precision, and intelligent production. CNC machining combined with automated manufacturing technologies further improves component production efficiency and meets future industrial robot development requirements.
Intelligent Manufacturing Upgrades Robot Fixture Machining
Smart manufacturing technologies are changing traditional robot component production methods. Through digital management and automated equipment, manufacturers can improve production efficiency and product quality.
Advantages of intelligent machining include:
- Automated Production Improves Efficiency: Reduces manual operations and increases machining continuity.
- Intelligent Inspection Ensures Quality: Monitors machining conditions in real time and improves product qualification rates.
- Data-Based Process Optimization: Adjusts machining parameters according to production data to improve stability.
- Rapid Response to Custom Requirements: Supports fast development of different robot fixture models.
Intelligent manufacturing technologies help companies improve robot component production capabilities and meet complex industrial application requirements.
Customized CNC Solutions Meet Robot Fixture Manufacturing Requirements
Different robot models and production tasks require different gripper fixture structures. Customized CNC machining provides dedicated manufacturing solutions based on actual applications, enabling the production of complex components while maintaining stable quality.
Customized machining services include:
- Developing machining solutions according to robot models;
- Optimizing fixture structures based on gripping objects;
- Selecting suitable materials according to operating environments;
- Completing precision inspection according to quality requirements.
Professional precision manufacturing solutions for robot gripper fixtures provide automation equipment companies with high-precision and reliable component support, improve robot operating efficiency, and promote continuous upgrades of intelligent manufacturing systems.
