Off-road motorcycles are designed to operate reliably on challenging terrain such as mud, sand, mountains, and rocky trails. Their components must withstand impact, vibration, heavy loads, and long-term wear. As a result, critical parts used in the engine, suspension, steering, braking, transmission, and frame systems require high machining accuracy and dimensional consistency. CNC machining can provide high-precision, stable, and flexible manufacturing solutions based on the geometry and material requirements of different off-road motorcycle parts. It is suitable for product development, prototyping, small-batch production, and customized component manufacturing.
Why Are Off-Road Motorcycle Parts Suitable for CNC Machining?
Off-road motorcycle components often feature multiple holes, complex curves, irregular grooves, and precision mating surfaces. Traditional machining methods may require multiple setups when producing complex geometries, while CNC machining uses digitally controlled tool paths to improve manufacturing consistency and accuracy.
Flexible Machining for Complex Components

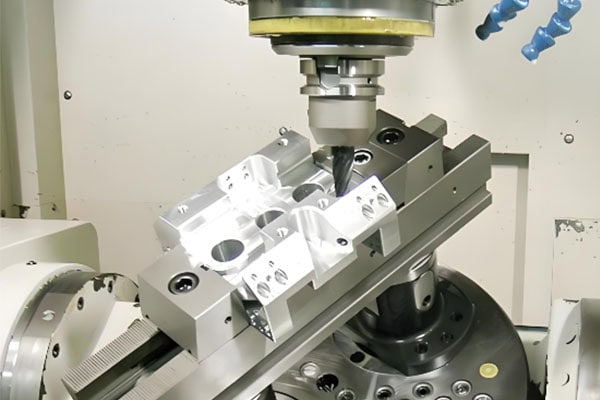

Engine mounts, suspension brackets, brake caliper mounts, and steering components often contain multiple machining surfaces. Depending on the component geometry, 3-axis, 4-axis, and 5-axis CNC machines can be selected. For complex curved surfaces and multi-angle structures, 5-axis machining can reduce repeated positioning and improve overall machining accuracy.
Stable Control of Precision Mating Dimensions
Off-road motorcycles contain many components that require precise mating dimensions, including bushings, wheel hubs, brake components, and transmission parts. CNC turning can accurately machine shaft diameters, internal bores, end faces, and grooves, while CNC milling is suitable for holes, flat surfaces, and complex profiles.
Suitable for Prototypes and Small-Batch Production
When developing a new off-road motorcycle model or upgrading existing components, manufacturers often need prototypes for assembly and performance testing. CNC machining can produce parts directly from 3D models and engineering drawings without requiring complex molds, making it suitable for prototyping, small-batch manufacturing, and customized components.
Common CNC Machined Off-Road Motorcycle Parts
Different motorcycle components perform different functions and therefore have different material, tolerance, and machining requirements.
| Off-Road Motorcycle Part | Common Materials | Recommended Machining Process | Key Requirements |
| Suspension Brackets | Aluminum, Steel | CNC Milling, 5-Axis Machining | Strength, Hole Position Accuracy |
| Steering Knuckles | Aluminum, Alloy Steel | CNC Milling, 5-Axis Machining | Position Tolerance, Dimensional Accuracy |
| Wheel Hubs | Aluminum | CNC Turning, Milling | Concentricity, Surface Quality |
| Brake Caliper Mounts | Aluminum, Steel | CNC Milling | Hole Position Accuracy, Structural Strength |
| Engine Mounts | Aluminum, Steel | CNC Milling, Drilling | Dimensional Stability, Hole Consistency |
| Drive Shaft Components | Alloy Steel, Stainless Steel | CNC Turning | Concentricity, Shaft Diameter Tolerance |
| Frame Connectors | Aluminum, Steel | CNC Milling | Strength, Dimensional Consistency |
How to Choose Materials for Off-Road Motorcycle Parts?
Aluminum Alloys
Aluminum alloys offer low weight, good machinability, and a favorable strength-to-weight ratio, making them ideal for lightweight off-road motorcycle components. Wheel hubs, suspension brackets, engine mounts, and certain structural components can be manufactured from aluminum according to specific design requirements.
Alloy Steel
For drive shafts, connectors, and components exposed to significant impact and mechanical loads, alloy steel can provide good strength and wear resistance. CNC turning and milling can be used to manufacture precision shafts and complex structural components with stable dimensions.
Stainless Steel
Off-road motorcycles are frequently exposed to moisture, mud, water, and outdoor environments. Some components therefore require good corrosion resistance. Stainless steel can be used for certain shaft components, connectors, and functional parts where corrosion resistance is an important consideration.
How Can CNC Machining Improve Component Quality?
Optimize Designs Through DFM Analysis
Component design directly affects machining difficulty, production lead time, and manufacturing costs. Design for Manufacturing (DFM) analysis can identify potential issues such as deep cavities, small internal radii, complex internal holes, and difficult fixturing structures before production begins. The design can then be optimized according to actual machining capabilities.
Select Multi-Axis Machining Based on Component Geometry
Complex off-road motorcycle components often require machining on multiple surfaces. Repeated setups can increase errors caused by datum changes and repositioning. Multi-axis CNC machining can reduce the number of setups and is particularly suitable for components with complex curved surfaces and multi-angle structures.
Maintain Batch Consistency Through Inspection
High-precision components require reliable quality control throughout production. Critical features such as hole diameters, shaft diameters, positional tolerances, flatness, and surface quality can be inspected according to engineering drawings. This helps ensure dimensional consistency between different production batches.
TiRapid’s CNC Machining Solution for Off-Road Motorcycle Parts
For off-road motorcycle manufacturers, powersports brands, and component suppliers, component machining needs to meet drawing specifications while also considering material performance, structural strength, machining efficiency, and production volume. TiRapid can analyze component structures based on CAD files, 3D models, and engineering drawings, then recommend suitable CNC milling, CNC turning, turn-milling, and multi-axis machining processes.
For complex components such as suspension brackets, wheel hubs, brake caliper mounts, and engine mounts, appropriate machining equipment and tool paths can be selected according to the specific geometry. Effective process planning can reduce unnecessary setups, improve machining efficiency, and maintain control over critical dimensions.
For new product development, CNC machining can also support different stages from prototyping to small-batch production. Manufacturers can produce initial samples for assembly testing and performance validation, then optimize component designs based on test results. This can help reduce manufacturing risks during the product development process.
Off-road motorcycles operate in demanding environments and are exposed to complex terrain, impacts, vibration, and intensive use. The machining accuracy of individual components directly affects vehicle assembly quality, handling performance, and operating reliability. CNC machining for off-road motorcycle parts can support a wide range of applications, including suspension, steering, braking, wheel hub, transmission, engine mounting, and frame components.Through appropriate material selection, CNC machining processes, multi-axis technology, and quality inspection, powersports manufacturers can obtain high-precision, stable, and consistent components. This provides reliable manufacturing support for off-road motorcycle product development, prototype validation, and small-batch production.
