CNC machining of brass is a versatile and efficient method for producing high-quality parts. Brass combines ease of machining with high conductivity, corrosion resistance, and even antibacterial properties. In this article, I’ll discuss the key advantages of brass, common grades, machining processes, and finishing options, as well as tips for improving precision and saving costs.
What Is Brass CNC Machining
Brass CNC machining combines the versatility of brass alloys with the accuracy of modern computer numerical control (CNC) systems. Brass’s unique mix of copper and zinc, sometimes alloyed with lead or tin, gives it superior machinability compared to most metals. I will introduce brass as a material, its key properties, and where CNC machining excels with it.
What Is Brass
Brass is a copper–zinc alloy known for its strength, durability, and golden appearance. By adjusting the ratio of copper and zinc, its hardness, ductility, and corrosion resistance can be tailored for different uses. Brass offers excellent machinability, making it a preferred choice for CNC machining, especially in creating fittings, connectors, and decorative parts. It also conducts heat and electricity well while maintaining resistance to wear, which is why it is widely applied in automotive, electrical, plumbing, and architectural industries.
Key Properties of Brass
| Property | Description | Value / Range |
| Machinability | Brass C360 is nearly 100% machinable, minimizing tool wear and cycle time. | ~100% (C360 baseline) |
| Electrical Conductivity | Good for connectors and terminals. | ~28% IACS |
| Thermal Conductivity | Efficient heat transfer, useful in heat sinks. | 115 W/m·K |
| Corrosion Resistance | Strong in humid and marine environments, especially C464 naval brass. | — |
| Antibacterial | Copper content provides natural antimicrobial effect for plumbing/medical. | — |
| Aesthetic & Cost | Golden luster rivals decorative metals at lower cost. | — |
| Tensile Strength | Strength varies by grade. | 350–700 MPa |
| Density | Typical for copper alloys. | ~8.5 g/cm³ |

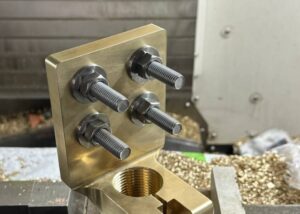

What Is Brass CNC Machining
Brass CNC machining is a subtractive manufacturing process that uses computer numerical control (CNC) to guide cutting tools for turning, milling, drilling, and tapping operations on brass workpieces. The process is driven by programmed G-code, ensuring full automation and precision. Compared to traditional manual or semi-automatic machining, CNC offers superior accuracy and repeatability, consistently maintaining tolerances within 0.01mm and achieving surface finishes as fine as Ra 0.6 µm. Moreover, CNC machining enables both one-off prototypes and mass production runs in the tens of thousands, ensuring efficiency and flexibility. For this reason, brass CNC machining is widely adopted across electronics, automotive, aerospace, and decorative hardware industries as the preferred method for high-precision brass components.
Advantages and Limitations of Brass CNC Machining
Through my projects, I’ve learned that brass CNC machining delivers outstanding advantages but also comes with specific limitations. Here’s my breakdown:
Advantages
High Precision: With CNC machines, I can consistently maintain tolerances within ±0.01mm, which is critical for electrical connectors and precision valve components.
Superior Surface Finish: Under optimized cutting conditions, brass parts can achieve surface roughness down to Ra 0.6 µm, ideal for sealing surfaces and decorative items.
High Efficiency: Free-cutting brass (C360) has a machinability rating of nearly 100%, reducing machining cycles by 30–40% compared to stainless steel or titanium while extending tool life.
Limitations
Thin-Wall Deformation: In parts with wall thickness below 0.5 mm, I’ve seen frequent warping or deflection if fixturing and toolpaths aren’t carefully controlled.
Environmental and Regulatory Constraints: Leaded brass such as C360 is easy to machine but increasingly restricted under RoHS and REACH regulations. For clients in Europe and North America, I often recommend low-lead or lead-free alternatives (e.g., C69300), though these alloys come with higher costs and slightly lower machinability.

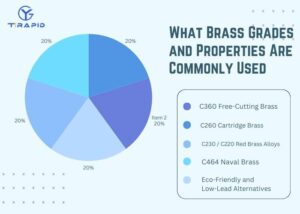

What Brass Grades and Properties Are Commonly Used
Brass comes in many grades tailored to machinability, strength, and corrosion performance. Common brass grades include: C360 Free-Cutting Brass, C260 Cartridge Brass, C230 / C220 Red Brass Alloys, C464 Naval Brass, Eco-Friendly and Low-Lead Alternatives .
C360 Free-Cutting Brass
This is my go-to material when speed matters. With 3% lead, C360 machines quickly, leaving excellent surface finishes. It’s perfect for screws, nuts, and precision fittings. The downside is its limited use in medical or food applications due to lead.
C260 Cartridge Brass
Also called 70-30 brass, this grade has 70% copper and 30% zinc. I often suggest it for deep-drawn parts like radiator cores or ammunition casings. It balances ductility and strength while remaining corrosion-resistant.
C230 / C220 Red Brass Alloys
Red brass (C230) and commercial bronze (C220) are popular in architecture and plumbing. Their high copper content gives them a warm reddish tone and strong resistance to dezincification, making them reliable for pipe fittings.
C464 Naval Brass
When clients ask me about marine hardware, I recommend C464. Its tin content enhances seawater resistance and hardness, making it suitable for ship propeller shafts, bearings, and marine fasteners.
Eco-Friendly and Low-Lead Alternatives (RoHS/REACH)
Today, compliance matters. In Europe, I’ve had customers request RoHS-compliant, low-lead brass for safety and environmental regulations. Lead-free brass alloys like C69300 are alternatives, though they can be more challenging to machine.
What are the production methods of CNC brass processing
Brass’s high machinability allows me to use almost every CNC process effectively. Let’s explore the most common methods.
CNC Milling (3/4/5 Axis) and Turning
3-/4-Axis Machining: Ideal for flat surfaces and simple 3D shapes such as valve bodies and brackets, achieving tolerances down to ±0.01 mm.
5-Axis Machining: I often use this for complex geometries like curved housings or precision medical connectors, completing multiple faces in one setup to reduce cumulative errors.
Turning: Highly efficient for bushings, sleeves, and threaded parts, with surface finishes easily reaching Ra below 0.8 µm.
Mill-Turn, Multi-Spindle, and Swiss-Type Machining
Mill-Turn Centers: Combine milling and turning in one machine, minimizing setups and ideal for rotational parts with slots or cross-holes.
Multi-Spindle Machines: When producing brass connectors, I use these to process multiple stations simultaneously, boosting productivity by 3–5 times.
Swiss-Type Lathes: Perfect for small-diameter parts under 32 mm, such as electronic connectors. With high spindle speeds (>10,000 rpm) and bar support, they ensure dimensional stability.
Rapid Prototyping and Small-Batch Runs
Cost-Effective Validation: Brass prototypes are relatively inexpensive, ideal for testing assembly and functionality during the design stage.
Fast Lead Times: I’ve delivered 1–2 functional prototypes within 1–3 days for clients needing urgent validation.
Flexibility: Supports runs from single prototypes up to 1,000 pieces, enabling market testing and design iteration.
Finishing Operations
Deburring: Even though brass machines cleanly, I always perform secondary deburring to eliminate sharp edges that could affect assembly or sealing.
Knurling: For hand-tightened nuts and knobs, I add knurling to improve grip.
Honing and Grinding: Applied to hydraulic or pneumatic sealing surfaces, achieving surface roughness of Ra 0.4 µm for leak-free performance.
Threading: CNC threading or thread rolling is used for brass fittings, with rolled threads showing 15–20% longer service life than cut threads.
What are the process flows of CNC brass processing
The CNC brass machining process includes material preparation, programming, machining, finishing, surface treatment, and inspection. Brass grades are selected and prepared, while CAD/CAM defines toolpaths and parameters. Turning, milling, and drilling achieve ±0.01 mm accuracy, with honing reaching Ra 0.6–0.8 µm. Post-processing like polishing or plating enhances durability and appearance. Strict quality control ensures precision and consistency for both prototypes and mass production.
Material Preparation
Select the appropriate brass grade (e.g., C360 free-cutting, C260 cartridge brass, C464 naval brass).
Brass bars or plates are cut to size and cleaned to ensure stable fixturing.
Density is typically 8.4–8.7 g/cm³, with grade selection depending on hardness and conductivity.
Programming and Process Planning
CAD/CAM software is used to model parts and generate G-code.
Planning covers toolpaths, feed rates, spindle speeds, and coolant strategies.
Example: For C360 brass, turning speed is 120–200 m/min with feed rate 0.1–0.3 mm/rev.
CNC Machining
Turning: Produces bushings, threads, with tolerances up to ±0.01 mm.
Milling: 3-, 4-, and 5-axis machines handle complex geometries like curved housings or intricate channels.
Drilling/Tapping: Common in valve bodies and pipe fittings, requiring strict hole and thread integrity.
Finishing and Secondary Operations
Deburring: Prevents sharp edges from affecting assembly.
Grinding/Honing: Sealing surfaces can achieve roughness levels of Ra 0.4–0.8 µm.
Thread Rolling: Extends service life by 15–20% compared to cut threads.
Surface Treatments and Post-Processing
Options include polishing, plating (nickel/chrome/gold), and powder coating.
Surface appearance and finish quality are critical for decorative and electrical components.
Inspection and Quality Control
Includes first article inspection (FAI), CMM checks, and optical measurement.
Typical tolerance is ±0.005 in (0.13 mm), with high-precision parts reaching ±0.002 in (0.05 mm).
Full compliance with ISO 9001 or AS9100 standards ensures consistency.
How to Achieve High Precision and Consistency in Brass Machining
High precision in brass machining depends on tolerance, tooling, and process control. Standard tolerance is ±0.13 mm, with high-end parts at ±0.01 mm, and surface finish down to Ra 0.6–0.8 µm. Carbide tools, feeds, and 120–200 m/min speeds improve efficiency, while MQL, one-and-done fixturing, probing, and SPC ensure consistency.
Typical Tolerances, Surface Finish, and Wall Thickness Guidelines
Standard tolerances: ±0.13 mm, high-end applications:±0.01 mm.
Typical surface roughness: Ra 0.8 µm, optimized finishing can reach Ra 0.6 µm.
Thin-wall guideline: minimum wall thickness 0.5 mm to avoid deformation.
Tooling and Cutting Parameters
Use carbide tools with positive rake angles for reduced cutting forces.
Turning feeds: 0.1–0.3 mm/rev.
Milling feeds: 0.05–0.2 mm/tooth.
Spindle speeds for C360 brass: 120–200 m/min.
MQL or light coolant extends tool life by 20–30% and reduces built-up edge.
Fixturing and Process Control
Adopt “one-and-done” fixturing to minimize tolerance stack-up.
Apply in-process probing for real-time dimension checks.
Use SPC (statistical process control) to maintain Cp/Cpk > 1.33 in mass production.
Surface Finishes and Post-Processing for Brass Parts
Brass surface finishes improve both function and aesthetics. As-machined parts (Ra 1.6–3.2 µm) serve industry, while polishing or mirror finishing reaches Ra ≤0.2 µm. Nickel, chrome, and gold plating add hardness, corrosion resistance, or conductivity. Powder coating boosts durability, and honing ensures Ra 0.4–0.8 µm leak-free seals.
As-Machined, Polished, Brushed, Mirror Finish
As-Machined: Brass, especially C360 free-cutting alloy, often leaves the machine with a naturally smooth and attractive golden surface. Typical roughness is Ra 1.6–3.2 µm, which is sufficient for many industrial applications.
Polished / Brushed: Mechanical polishing or brushing can improve roughness to Ra 0.8 µm, commonly used in architectural fittings, household hardware, and musical instruments.
Mirror Finish: For decorative and luxury applications, I polish brass down to Ra ≤0.2 µm, achieving a reflective surface that enhances both aesthetics and corrosion resistance.
Plating (Nickel, Chrome, Gold), Powder Coating
Nickel Plating: Increases hardness up to 450–500 HV and improves wear resistance and corrosion protection, ideal for valves and connectors.
Chrome Plating: Provides excellent corrosion resistance and a bright surface, with salt spray resistance exceeding 96 hours. Widely applied in bathroom fixtures and automotive parts.
Gold Plating: Offers superior conductivity and oxidation resistance, often used in high-end electronics and connectors. Typical coating thickness is 0.5–2 µm.
Powder Coating: Less common for brass but useful in outdoor or marine environments. It improves impact strength and corrosion resistance, extending service life by 30–40%.
Honing and Polishing for Sealing Surfaces
Honing: For hydraulic and pneumatic components, honing ensures bore straightness within 0.005 mm/100 mm and achieves Ra 0.4–0.8 µm, guaranteeing leak-free sealing.
Polishing of Sealing Faces: Precision polishing of mating surfaces enhances airtightness or watertightness, reducing leakage risk and extending service life by 20–25%.
Key Industries That Rely on Brass CNC Machining
Brass CNC machining supports aerospace, automotive, electronics, marine, and more. It offers conductivity, corrosion resistance, and durability for connectors, valves, and heat sinks. Architectural, medical, and luxury sectors benefit from antibacterial properties, ±0.01 mm precision, and mirror finishes (Ra ≤0.2 µm), combining functional performance with premium aesthetics.
| Industry | Typical Applications | Key Benefits of Brass |
| Aerospace | Electrical connectors, avionics housings, cabin systems | Lightweight, conductive, reliable in critical environments |
| Automotive & Heating Systems | Radiator fittings, HVAC connectors, valve components | Withstands high-temperature cycles, strong corrosion resistance |
| Electronics & Musical Instruments | Heat sinks, guitar components, high-end audio hardware | Excellent conductivity, acoustic quality, aesthetic appeal |
| Marine & Offshore | Propeller shafts, seawater valves, pipe fittings | Outstanding seawater corrosion resistance, durability |
| Architectural Hardware | Door handles, hinges, decorative fittings | Golden appearance, wear resistance, cost-effective vs. precious metals |
| Medical Devices | Antibacterial fittings, dental tools, precision parts | Natural antimicrobial properties, easy to sterilize, machining accuracy ±0.01 mm |
| Luxury & Decorative | Watch components, jewelry accessories, interior trims | Mirror polish to Ra ≤0.2 µm, premium aesthetic value |
How to Optimize Design and Cost in Production
Optimizing brass CNC production means refining design and process choices. Adding 0.5–1.0 mm radii and chamfers reduces tool wear by 20–30%, while ≥0.5 mm wall thickness prevents deformation. Simplifying geometry saves 15%, and avoiding overly tight tolerances cuts 30–50%. Swiss-type and multi-spindle machines boost output 3–5×, lowering costs by 35%.
DFM: Radii, Chamfers, Wall Thickness, and Tool Accessibility
Generous Radii: Sharp internal corners require special tools and multiple passes. Adding radii of 0.5–1.0 mm reduces tool wear and cycle time, extending tool life by 20–30%.
Chamfers: Replacing sharp edges with chamfers improves assembly fit and reduces deburring costs.
Wall Thickness: Minimum wall thickness of 0.5–0.8 mm prevents deformation and allows faster feeds.
Tool Accessibility: Simplifying geometry to improve cutter reach avoids complex 5-axis repositioning, cutting machining cost by up to 15% per batch.
Tolerance Levels and Surface Requirements
Tolerances vs. Cost: Tightening from ±0.05 mm to ±0.01 mm can raise costs by 30–50% due to slower feeds and more inspections.
Surface Roughness: Industrial parts work well with Ra 1.6–3.2 µm, while sealing surfaces may need Ra ≤0.4 µm.
Balanced Specs: I advise clients to reserve tight tolerances only for critical features.
Process Choice: Swiss-Type and Multi-Spindle for Speed
Swiss-Type Lathes: Best for parts <32 mm, with spindle speeds 10,000–12,000 rpm, reducing cycle times by up to 40%.
Multi-Spindle Machines: Can machine multiple features simultaneously, achieving 3–5× output over single-spindle lathes.
Cost Advantage: Optimized setups reduce unit costs by 20–35%, ideal for connectors, fasteners, and fittings.
How to Ensure Quality and Compliance
Brass CNC quality relies on ISO 9001 and AS9100 standards, with CoCs ensuring traceability. FAI, CMM (±2 µm), and SPC (Cp/Cpk ≥1.33) maintain precision, while digital QMS keeps defect escapes under 500 ppm.
Certifications: ISO 9001, AS9100, and Material CoC
ISO 9001: My baseline QMS ensures standardized processes, document control, and continuous improvement. Defect rates are typically kept below 1% in volume production.
AS9100: Required for aerospace and defense, covering risk management, configuration control, and supplier audits. Enables tolerances as tight as ±0.002 in (0.05 mm) for safety-critical parts.
Material CoC: Each batch of brass (e.g., C360, C464) includes a Certificate of Conformance with chemical composition, mechanical properties, and compliance with RoHS/REACH, ensuring full material traceability.
First Article Inspection (FAI), CMM, and In-Process Checks
FAI (AS9102): I perform 100% dimensional verification on first articles before mass production, eliminating systemic errors early.
CMM: Used for micron-level accuracy, capable of ±2 µm measurement for features like hole diameter, true position, and flatness.
In-Process Probing & SPC: CNC probing plus SPC ensures Cp/Cpk ≥ 1.33 before continuing production.
Height Gauges & Optical Inspection: Provide ±0.005 mm accuracy for rapid checks of threads, profiles, and surfaces in high-volume runs.
Traceability and Defect Control
Every part is serialized, and data is logged in a digital QMS, ensuring full traceability from raw material to shipment.Defects trigger root-cause analysis via 8D or Fishbone methods, with corrective actions documented.
With these controls, defect escape rates remain below 500 ppm, meeting aerospace and medical industry benchmarks.
Common Challenges in Brass CNC Machining
Brass CNC machining faces challenges despite good machinability. Burrs must stay under 0.05 mm, and thin walls (<0.6 mm) or micro-holes risk distortion. Threads require Ra ≤0.8 µm finishes for sealing. Leaded brass (C360, ~3%) is restricted, raising costs by 15–20%. In marine use, corrosion and galvanic effects demand protective coatings.
Burrs, Fine Features, Thin-Wall Deformation, Thread & Seal Protection
Burr Formation: Brass often produces small burrs on edges and fine features. For precision parts, burr height must be kept under 0.05 mm. Deburring or electro-polishing is usually required.
Fine Features: Micro-holes below Ø0.5 mm or walls thinner than 0.6 mm risk distortion. Using 10,000–12,000 rpm spindle speeds with sharp carbide drills helps maintain accuracy.
Thin-Wall Deformation: Unsupported thin walls deform easily. I recommend minimum wall thickness of 0.5–0.8 mm, combined with step-down cutting and soft jaws for fixturing.
Threads & Seals: Brass threads may gall if not cut properly. Sealing surfaces require finishes of Ra ≤0.8 µm to ensure airtight or leak-free connections.
Lead Content, Environmental Rules, Salt Spray and Galvanic Corrosion
Lead Restrictions: C360 brass (~3% lead) machines well but is restricted by RoHS/REACH. For medical or drinking-water parts, I suggest low-lead (<0.1%) or lead-free brass.
Environmental Compliance: EU/US restrict lead in consumer products. Substitution with lead-free brass increases machining difficulty and costs by 15–20%.
Salt Spray Resistance: Standard brass corrodes after 24–48 hours in ASTM B117 salt fog tests. Naval brass (C464) with tin provides better seawater resistance.
Galvanic Corrosion: Contact with stainless steel in saltwater accelerates corrosion. Insulating gaskets or coatings are needed to prevent galvanic damage.
FAQs
What is the quality type of brass parts with customer satisfaction?
I deliver brass parts with tolerances as tight as ±0.01 mm, surface roughness down to Ra 0.6 µm, and defect rates below 500 ppm. Customers appreciate ISO 9001/AS9100 quality control and full traceability, ensuring both performance and compliance.
Is brass more cost-effective than stainless steel?
Yes. Brass machines at nearly 100% machinability index, reducing cycle time by up to 40% versus stainless steel. Tool wear is lower, and raw brass averages $2–3/lb, while stainless often exceeds $5/lb, making brass more economical.
Can brass parts handle marine conditions?
For marine use, I recommend C464 naval brass, which contains tin for seawater resistance. It passes ASTM B117 salt spray tests >200 hours, far exceeding standard brass’s 24–48 hours. This ensures fittings and shafts withstand corrosive offshore environments.
What’s the minimum order for CNC brass machining?
I support low-volume flexibility, with a minimum order of 1 piece for prototypes. For production, capacity reaches 10,000+ parts/month. This allows customers to test small batches first, then scale to mass production without risk.
What are some tips for machining brass components?
When machining brass, I always use sharp carbide tools with positive rake angles to reduce cutting force. I set spindle speeds around 120–200 m/min and adjust feed rates depending on part geometry. For thin walls or fine features, I minimize depth of cut to avoid deformation. To control burrs, I use light coolant or MQL, which also extends tool life. I also ensure proper fixturing—“one-and-done” setups help maintain tolerances and reduce error in high-precision components.
Conclusion
Brass CNC machining delivers the rare combination of high precision, excellent machinability, durability, and aesthetic appeal. With the right alloy, process, and finishing, brass components can outperform alternatives in industries ranging from aerospace to marine. By following DFM principles and strict quality control, you can achieve both cost efficiency and exceptional reliability in your custom brass parts.What’s your biggest challenge with brass machining—tight tolerances, surface finishes, or cost control? Share your experience, or reach out to explore how we can optimize your next project together.
