Automotive CNC machining is driving industry upgrades at an unprecedented pace. Its advantages lie not only in speed and precision, but also in its adaptability to a wide range of materials (metals, plastics, and composites). From traditional internal combustion engine components to lightweight structural components for electric and autonomous vehicles, CNC machining has penetrated every aspect of the automotive industry chain. This article will provide an in-depth analysis of the core advantages , typical application scenarios , and future trends of automotive CNC machining , helping you fully understand how this technology is shaping the new landscape of automotive manufacturing.
What Is Automotive CNC Machining
Automotive CNC machining refers to the process of using computer numerical control technology to precisely machine metal, plastic, or composite materials into automotive parts that meet design requirements. Its core is to control the movement of machine tools through computer programs, directly converting CAD designs into physical parts that can be produced with high precision and repeatability.
In automotive manufacturing, CNC machining is not only used for rapid iteration in the prototype design phase, but is also widely used in mass production to ensure the consistency and accuracy of parts. Its main features include:
High precision : ±0.01mm tolerance can be achieved in key parts , ensuring the assembly quality of core components such as engines and transmission systems.
Complex shape processing capability : Multi-axis machine tools can complete multi-faceted processing in one clamping, adapting to the complex geometric structures of automotive parts.
Strong material adaptability : suitable for aluminum alloy, steel, titanium alloy, engineering plastics, carbon fiber and other materials.
Production flexibility : supports single-piece customization and can quickly switch to mass production.
With the development of electrification, lightweighting and autonomous driving, automotive CNC machining is combining new technologies such as artificial intelligence tool path optimization and hybrid manufacturing (CNC + additive manufacturing) to continuously improve efficiency, reduce costs, and expand its application in high-performance automotive parts. It has become one of the important pillar processes of modern automobile manufacturing.
The Core Advantages Of Automotive CNC Machining
The core advantages of automotive CNC machining lie in high efficiency, high precision, stable batch sizes, material adaptability, customization, and automation. Not only can it complete the machining of complex parts in a short time, it also maintains accuracy and consistency of ±0.01 mm . It is suitable for a variety of metals and plastics, and its high degree of automation reduces manual intervention and errors, thus meeting the multiple demands of modern automotive manufacturing for speed, quality, and flexibility.
The following is expanded from six aspects:
- Speed aAnd Efficiency:

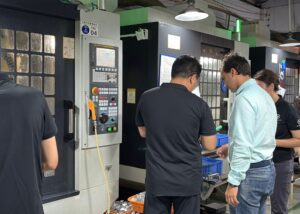

CNC machine tools leverage high-speed cutting technology and automated tool changing systems to complete processes that traditionally take days in just minutes or hours. For common mass-produced parts in the automotive industry, such as cylinder heads and transmission housings, cycle times can be shortened by 30%–50%, significantly boosting production capacity. - High Precision And High Consistency:
An advanced CNC system, combined with precision ball screws and a highly rigid machine tool structure, enables machining tolerances on key components to be consistently controlled to ±0.005 mm or higher. This is particularly important for safety- and performance-critical components like the engine and braking system, ensuring assembly reliability and consistent vehicle performance. - Batch Stability:

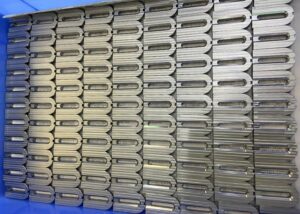

In large-scale production, CNC machining can achieve consistency throughout the lifecycle of parts through programmed control. For example, when producing 10,000 parts at a time, dimensional variations are typically controlled within microns, effectively reducing scrap and rework costs. - Material Adaptability:
Automotive CNC machining can handle nearly all materials required for automotive manufacturing—from lightweight aluminum alloys and wear-resistant cast iron to high-strength steels, titanium alloys, engineering plastics, and carbon fiber composites. The combination of a wide range of tools and cutting parameters provides exceptional processing flexibility. - Customization Capabilities:
For low-volume customization, high-performance modifications, or prototyping, CNC machining eliminates the need for expensive tooling and enables rapid product model changes simply by changing the program. For example, a racing team can obtain a new intake manifold or suspension component that meets their design within days. - Automation:
By combining automatic loading and unloading systems, robotic arms, and online inspection systems, CNC machining can achieve full process automation, significantly reducing manual intervention and human error, while supporting 24/7 uninterrupted production and further improving production capacity and economic benefits.
Limitations Of Automotive CNC Machining
While CNC machining excels in precision, efficiency, and automation, it faces three major limitations in actual production. Small batches often result in relatively high unit costs , rapid tool wear leads to frequent tool replacements , and while complex multi-axis machining (such as five-axis machining) can achieve highly flexible shapes, programming and setup design are time-consuming . Therefore, when planning automotive parts projects, it is crucial to carefully consider production volume, material, and structural complexity to select the right machining solution .
Small Batches Are More Expensive.
CNC machining requires initial fixed costs such as programming, fixture manufacturing, and tool preparation. These costs are difficult to spread across small batches, resulting in high unit prices. This problem is particularly evident during the development phase or when customized requirements are required.
Rapid Tool Wear:
When machining high-strength steel, titanium alloys, or highly abrasive composites, tool life is significantly shortened, requiring frequent replacement or resharpening. This not only increases consumable costs but can also disrupt production and affect overall efficiency.
Complex Multi-Axis Machining Takes A Long Time To Program.
While multi-axis CNC machining can achieve high degrees of freedom, toolpath planning, clamping solutions, and interference detection require experienced engineers to spend a significant amount of time optimizing. This prolongs project launch cycles, especially challenging teams’ expertise and resource allocation capabilities under tight deadlines.

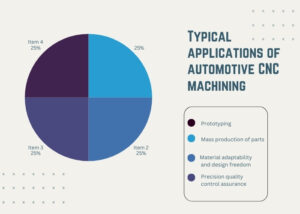

Typical Applications Of Automotive CNC Machining
Automotive CNC machining extends beyond rapid prototyping during the prototyping phase to encompass mass production, quality inspection, and custom modifications. Compared to traditional machining methods, CNC technology, with its high precision, stability, material adaptability, and automation advantages, significantly improves production efficiency while ensuring quality , providing reliable and repeatable production solutions.
Prototyping
In the early stages of automotive design and development , prototype verification is a crucial step in ensuring product feasibility. CNC machining can quickly transform design files (CAD/CAM data) into physical parts for visual review, functional verification, and structural testing.
Speed Advantage : Compared with mold manufacturing, CNC machining does not require a long mold development cycle and parts can usually be processed within a few days.
High Precision : The tolerance of key parts can reach ±0.01mm , ensuring that the test results have engineering reference value.
Flexible Material Selection : Aluminum alloy, steel alloy, POM, nylon and other materials that are the same as the final mass-produced parts can be directly used to facilitate accurate performance evaluation.
Multiple-Round Iteration Support : The R&D team can quickly modify the design based on test feedback and re-process and verify, accelerating the R&D process.
In the high-end automotive and racing industries, rapid prototyping is particularly critical because it helps engineers complete aerodynamic testing, strength testing, and assembly verification in a very short time, thereby speeding up the launch of new models.
Mass Production Of Parts
CNC machining is not only suitable for small-batch and custom production, but also plays an important role in medium to large-volume production , especially for functional parts that require high-precision fit.

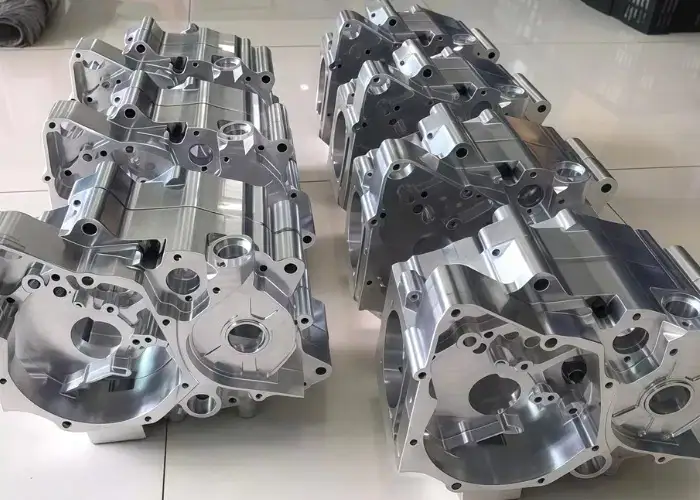

Engine Components
Components such as cylinder heads, cylinder blocks, crankshafts, and pistons are required to operate for extended periods under high temperatures, high pressures, and high friction. CNC machining ensures that every batch of parts is identical in size, geometric tolerances, and surface quality, minimizing assembly errors and operational failures.
Drivetrain
Transmission housings, gears, drive shafts, and more require high-precision tooth profile machining and coaxiality control. CNC multi-axis machining centers can complete complex contours and hole positions in a single operation, reducing setup times and improving machining efficiency and consistency.
Suspension And Steering Systems
Parts like control arms and steering knuckles are subject to constant impact and vibration during vehicle operation. CNC machining not only meets these strength and rigidity requirements, but also reduces machining deformation and achieves lightweight design by optimizing tool paths and cutting parameters.
Braking system
The balance and surface finish of components like brake calipers and discs directly impact braking performance and safety. CNC machining precisely controls weight distribution and achieves symmetry, ensuring braking stability even at high speeds.

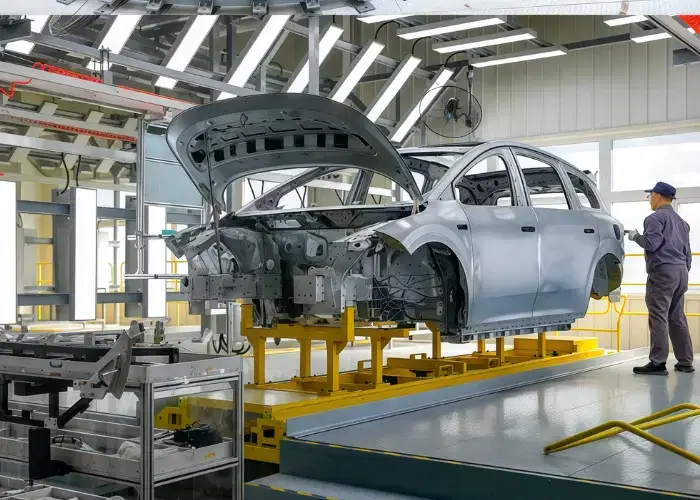

Body And Interior
Parts like dashboard frames, lamp housings, and door handles must not only meet structural precision but also maintain aesthetic appeal. CNC machining can achieve complex curves, subtle chamfers, and high-gloss finishes, meeting both decorative and functional requirements.
Custom Modified Parts
For the racing, off-road, and personalized modification markets, CNC machining can produce unique parts according to customer needs, such as customized intake systems, exhaust system brackets, etc., to meet the dual pursuit of high performance and personalization.
Material Adaptability And Design Freedom
Auto parts involve a variety of materials, including aluminum alloys, steel alloys, titanium alloys, copper alloys, engineering plastics, carbon fiber composites, etc. CNC machining has obvious advantages in material adaptability:
Metal Materials : Aluminum alloy (6061, 7075) is lightweight and corrosion-resistant, suitable for structural parts ; steel alloy is suitable for high-strength parts ; titanium alloy is used for high-end racing parts ; copper alloy has excellent conductivity in electrical systems.
Non-Metallic Materials : Engineering plastics such as ABS, POM, and nylon are suitable for lightweight functional parts , and carbon fiber composites achieve high strength and lightweight in car bodies and racing car parts.
This cross-material capability enables design engineers to find the optimal balance between structure, performance and cost, enabling bolder, higher-performance designs.
Precision Quality Control Assurance
In the automotive industry, quality control is directly related to vehicle safety and performance. CNC machining, combined with advanced testing equipment and strict quality standards, ensures that every part meets industry certifications and customer requirements.
Detection method : Coordinate measuring machine (CMM) can realize micron-level size detection, and optical measurement system is used for the detection of complex surfaces and fine features.
Surface roughness control : Controlled within the range of Ra 0.6 – 3.2 μm according to the purpose of the part to ensure friction performance and assembly accuracy.
Tolerance management : key fitting parts are strictly controlled within ±0.01 mm to ensure interchangeability and stability between parts.
Quality system certification : ISO 9001, IATF 16949 and other international standard systems ensure that the entire process is traceable and verifiable.
Typical applications of automotive CNC machining extend beyond a single process, encompassing the entire automotive manufacturing industry chain. From R&D to mass production, from performance optimization to customized modifications, CNC machining has become the “invisible engine” of the automotive industry with its high precision, high efficiency, and high flexibility.
What Are The Commonly Used Materials For Automotive CNC Machining
CNC machining is its ability to process a wide range of metals, engineering plastics, and composite materials with high precision, even including specialized materials like wood to meet the modification needs of customers in various industries . The choice of material directly determines component performance, lifespan, and cost control. This requires a comprehensive consideration of multiple factors, including strength, weight, corrosion resistance, processability, and cost .
The following table will intuitively show the performance comparison of common materials to help understand their application positioning in automobile manufacturing :
| Material Type | Representative brand | Density (g/cm³) | Tensile strength (MPa) | Features | Common Applications |
| aluminum alloy | 6061, 7075 | 2.70 | 290–570 | Lightweight, corrosion-resistant, and good processability | Body structural parts, engine parts, wheels |
| Steel alloys | 20CrMo, 40Cr | 7.85 | 600–1000+ | High strength, wear resistance, strong bearing capacity | Drive shafts, gears, suspension components |
| cast iron | HT250 | 7.10 | 200–350 | Good wear resistance and vibration damping | Engine block, brake disc |
| titanium alloy | Ti-6Al-4V | 4.43 | 900–1100 | High strength, light weight, corrosion resistant | Racing parts, exhaust systems |
| Copper alloy | H59 brass | 8.50 | 200–400 | High conductivity, corrosion resistance | Electrical connectors, conductive parts |
| Engineering Plastics | ABS, POM, Nylon | 1.0–1.4 | 40–80 | Lightweight, wear-resistant, good insulation | Interior parts, functional brackets |
| carbon fiber composites | CF/EP | 1.6 | 500–1500 | Ultra-light, high-strength, and fatigue-resistant | Racing car body and interior panels |
| Wood (Special Modification) | Walnut, etc. | 0.6–0.9 | 50–100 | Beautiful decoration, customizable | Luxury car interior, steering wheel decoration |
What Are The Key Points Of Quality Control In Automotive CNC Machining
In automotive CNC machining, quality control is not only a core component for ensuring part accuracy and reliability, but also a crucial indicator of the maturity of the production system . Deviations can lead to assembly difficulties, performance degradation, and even safety hazards. Therefore, quality control is integrated into every stage of machining , from raw material inspection and process monitoring to finished product testing and certification, forming a comprehensive quality assurance system.
1. Three-Coordinate Measurement And Optical Inspection
Coordinate Measuring Machine (CMM) : This machine uses a probe to measure part size, shape, and position in three dimensions, achieving accuracy of ±0.001 mm or higher. It is ideal for dimensional verification of high-precision components such as engine cylinder heads and transmission housings.
Optical inspection system : uses non-contact laser or optical scanning to perform rapid full-size inspection of complex surfaces and tiny features. It is often used for complex-shaped parts such as lamp housings and interior panels.
2. Surface Roughness (Ra 0.6 – 3.2 µm)
Surface roughness directly affects the friction coefficient, sealing and fatigue life of parts.
Common requirements in the automotive industry:
Ra 0.6 –1.6 µm : High-precision moving parts (such as piston rods, bearing seats).
Ra 1.6–3.2 µm : Structural parts and general functional parts.
Testing methods include contact roughness testers and optical interferometers to ensure that surface quality meets standards.
3. Tolerance Management (±0.01 mm )
Key mating parts (such as gear shafts and valve seats) usually require a dimensional tolerance of ±0.01 mm to ensure assembly accuracy and operational stability.
SPC (Statistical Process Control) is used to monitor the production process in a digital manner, and deviations are discovered and corrected in a timely manner through control charts.
Use special inspection tools and online measurement in batch production to reduce the risk of missed inspections.
4. Quality Certification (ISO 9001, IATF 16949)
ISO 9001 : General quality management system standard to ensure the standardization and continuous improvement of production processes.
IATF 16949 : A quality management system standard specifically for the automotive industry, covering requirements such as product safety, traceability, and continuous improvement. It is a pass for global automotive manufacturers and suppliers.
Having certification not only enhances the company’s reputation, but also enables it to enter the supply chain systems of more international automotive brands.
Of CNC Machining With 3D Printing, Injection Molding, And Die Casting
In the automotive manufacturing sector, CNC machining, 3D printing, injection molding, and die-casting are four common and important manufacturing methods. Each is suitable for different production scenarios . CNC machining offers significant advantages for projects requiring high precision, short lead times, and multi-material compatibility . Injection molding and die-casting are more competitive for high -volume production and low unit costs . For innovative parts with complex structures and low production volumes, 3D printing may be an ideal solution.
1. Precision And Surface Quality
CNC machining offers unrivaled precision, typically achieving ±0.01 mm, with high-end equipment capable of even ±0.001 mm . Surface roughness can be maintained within a stable range of Ra 0.6–3.2 µm . This makes it suitable for high-precision mating parts such as engine cylinder heads, transmission housings, and suspension steering knuckles.
3D printing offers advantages in terms of shape freedom, but suffers from surface roughness and typically maintains an accuracy of ±0.05–0.1 mm, making it suitable for visual verification and complex structural prototypes.
Injection molding and die casting rely on high-precision molds to achieve stable and smooth surfaces in mass production, but this requires sufficient mold quality.
2. Production Cycle
Both CNC and 3D printing require no molds; they can be directly processed after programming is complete, with prototype turnaround times typically ranging from 1–5 days.
Injection molding and die-casting, on the other hand, require longer initial mold production times (ranging from 2–8 weeks). However, once mass production begins, daily output of thousands or even tens of thousands of parts is readily possible, making them suitable for large-scale production of standardized parts.
3. Cost Structure
In small-batch production, CNC offers a clear advantage due to the lack of mold costs. This is especially true for batches under 200 pieces, where the cost per piece is often lower than injection molding or die casting.
3D printing is cost-effective for single pieces or very small batches, but becomes uneconomical for medium to large-volume production.
Injection molding and die casting molds are expensive (typically thousands to hundreds of thousands of yuan), but in large batches exceeding tens of thousands, unit costs can be reduced to very low levels.
4. Material Adaptability
CNC machining can process the widest range of materials, including aluminum alloys, steel alloys, titanium alloys, copper alloys, engineering plastics, and carbon fiber composites, meeting the diverse needs of automotive structural, functional, and exterior parts.
3D printing is limited by the types of powders or wires available, and metal printing is expensive and slow.
Injection molding is suitable for various thermoplastics and reinforced plastics.
Die casting, primarily used for light alloys such as aluminum, magnesium, and zinc, is suitable for producing high-strength metal casings and structural components.
How CNC Machining Is Changing The Automotive Industry
In the past , the manufacturing of automotive parts relied primarily on manual labor or traditional machine tools, which was not only time-consuming but also limited in precision and consistency. The widespread adoption of CNC technology has accelerated the automotive industry’s transition from manual to automated production , enabling automakers to rapidly complete prototype development, small-batch trial production, and large-scale mass production, significantly improving product iteration speed and market responsiveness.
1. Accelerate Product Development And Prototyping
Traditionally, it takes weeks or even months to go from design to finished product for a new automotive part. CNC machining, however, simply converts design files into numerical control programs and produces physical prototypes in hours to days. This efficient iteration capability enables automakers to quickly validate designs, test functionality, and conduct multiple rounds of optimization in a short period of time.
2. Improve Component Precision And Assembly Consistency
The precision of automotive component fit directly impacts the performance and safety of the entire vehicle. CNC machining can maintain a stable dimensional tolerance of ±0.01 mm on key parts , ensuring seamless assembly of core components such as the engine, transmission, and suspension system. This high consistency not only improves vehicle reliability but also reduces the need for after-sales repairs.
3. Promote Multi-Material And Lightweight Applications
Modern vehicles are increasingly incorporating lightweight materials such as aluminum alloys, titanium alloys, and carbon fiber composites to reduce vehicle weight and improve fuel efficiency or range. CNC machining can flexibly adapt to the processing characteristics of different materials, enabling efficient cutting of high-strength steel and precise machining of brittle composite materials, providing strong support for lightweight design.
4. Reduce Manual Dependence And Improve Automation
In a CNC machining center, a single machine can typically complete multiple operations simultaneously through the use of an automatic tool changer (ATC) and multi-axis linkage. The machining process is precisely controlled by a computer, minimizing manual intervention. This not only reduces human error in production but also lowers long-term labor costs, making production more predictable and stable.
5. Shorten The Cycle From Design To Market
Competition in the automotive industry is fierce, and those who can bring new products to market faster gain an advantage. CNC machining, with its efficient programming and rapid processing capabilities, has reduced the cycle time from CAD design to finished parts by 30%–70%, significantly improving market responsiveness.
Development Trend Of Automotive CNC Machining
As the global automotive industry moves toward intelligent, lightweight, and sustainable development, automotive CNC machining has entered a new stage of development. Traditional high-speed, high-precision machining can no longer fully meet the industry’s competitive demands. Companies are beginning to introduce new technologies such as artificial intelligence, hybrid manufacturing, novel tool coatings, and lightweight materials to further improve production efficiency and product performance. Furthermore, the rise of autonomous driving and new energy vehicles is placing higher demands on the machining accuracy, material properties, and production flexibility of precision components, making CNC machining even more crucial in future automotive manufacturing.
| Trend direction | Main technologies | Expected results | Application Areas |
| AI Intelligent Tool Path | Automatic toolpath optimization algorithm | Improve machining efficiency by 15–30% and extend tool life | Engine cylinder head, gearbox housing |
| Hybrid Manufacturing | CNC + Metal 3D Printing | Material waste is reduced by 30%, and complex structures are formed in one step | Racing parts, customized accessories |
| New tool coating | PCD, ceramics, nano coating | Tool life extended 3–5 times | Aluminum alloy and high silicon material processing |
| Lightweight materials | Aluminum, magnesium, titanium, carbon fiber | Vehicle weight reduction of 5–20%, lower fuel consumption | New energy vehicles, sports models |
| Autonomous driving and new energy | High-precision sensor bracket, motor housing | ±0.01 mm accuracy improves assembly reliability | Autonomous driving system, electric drive assembly |
FAQs
What Is Automotive Machining?
Automotive machining refers to the precision manufacturing of vehicle components using CNC (Computer Numerical Control) technology. In my work, this means producing parts with tolerances as tight as ±0.005 mm, ensuring optimal fit and performance. It covers processes like milling, turning, drilling, and grinding, enabling high repeatability for both prototype and mass production runs in the automotive sector.
What Products Are Made By CNC Machining For Automotive Industry?
From my projects, CNC machining delivers a wide range of automotive components—engine blocks, cylinder heads, brake calipers, suspension arms, transmission housings, and custom interior parts. For example, a gearbox housing we produced maintained ±0.01 mm concentricity over 1,000+ units, proving CNC’s ability to achieve consistent quality at scale.
What Kind Of CNC Machine Is Used In The Automotive Industry?

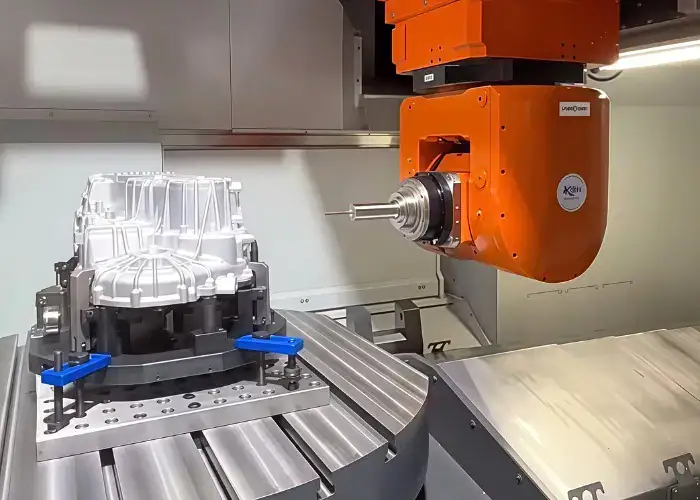

In automotive manufacturing, I use 3-axis, 4-axis, and 5-axis CNC milling machines for complex geometries, along with high-precision CNC lathes for rotational parts. For large engine blocks, horizontal machining centers with pallet changers maximize throughput. Multi-tasking machines integrating milling and turning reduce setups, boosting productivity by over 30%.
What Materials Are Used In Automotive CNC Machining?
I regularly work with aluminum alloys (6061, 7075) for lightweight structures, alloy steels for strength-critical components, cast iron for wear-resistant engine parts, and titanium for high-performance racing applications. Engineering plastics like POM and nylon are also common for lightweight functional parts, each selected based on strength, weight, and cost requirements.
Conclusion
Automotive CNC machining has become an indispensable core process in modern automotive manufacturing. From prototype verification to mass production, and from lightweight aluminum alloy components to complex carbon fiber structures, CNC machining not only meets the automotive industry’s stringent requirements for performance, quality, and safety, but also promotes the widespread adoption of personalized customization and new materials. In the future, as AI-powered toolpaths, hybrid manufacturing, new tool coatings, and lightweight materials continue to mature, automotive CNC machining will play an even greater role in new energy vehicles, autonomous driving, and high-performance vehicles, continuing to lead automotive manufacturing towards greater efficiency, precision, and environmental friendliness.
