What Is Rapid Tooling

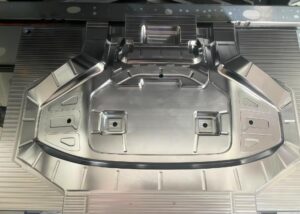

Rapid tooling uses processes such as 3D printing and CNC to produce, at low cost and with short lead times, molds suitable for production injection molding. It enables rapid validation of gating, cooling, shrinkage, and cycle time, supports small-batch runs of 50–5,000 parts, and reduces both risk and cost.
What Is Rapid Tooling
Rapid tooling uses processes like 3D printing, CNC machining, and electroforming to create production-capable molds and cavities in hours to days at lower upfront cost for injection molding, thermoforming, compression molding, or casting. It validates production-grade materials and processes—gating, cooling, shrinkage, and cycle time—while delivering stable small batches.
Common materials include aluminum, pre-hardened steels, additively manufactured metals, high-temperature resins, and silicone, with typical lifetimes from hundreds to a few thousand cycles. Compared with conventional steel tooling that takes 4–8 weeks, delivery is often 2–10 days, cutting timelines by about 40–60%. Best suited for 50–5,000 parts (bridge runs, pilot sales, certifications), scale to conventional steel tooling later to minimize unit cost.
The Difference Between Rapid Tooling And Rapid Prototyping
Purpose and intent
Rapid tooling：Rapid tooling focuses on creating production-capable tools such as molds, cores, and cavities, then running real processes to validate gating, cooling, shrinkage, cycle time, and stability in low-volume batches.
Rapid prototyping：Rapid prototyping focuses on producing reviewable parts quickly for aesthetic assessment, ergonomic checks, assembly fit, functional proof, and early strength screening.
Deliverables
Rapid tooling：With rapid tooling, deliverables include tool sets and batches of parts manufactured through the intended process, suitable for process window studies, engineering validation, and bridge production.
Rapid prototyping：With rapid prototyping, deliverables are a small number of parts for concept comparison, design selection, and basic functional testing.
Materials and processes
Rapid tooling：Rapid tooling typically uses production-grade materials and production-like processes such as injection molding, thermoforming, compression molding, or metal casting.
Rapid prototyping：Rapid prototyping typically relies on additive or subtractive routes whose materials may not fully match production properties, they are ideal for directional insights but not a replacement for final production-grade validation.
Time and cost structure
As practical ranges, rapid tooling often ships in two to ten days and is about forty to sixty percent faster than traditional steel tooling preparation, rapid prototyping commonly delivers within the same day to three days.
Rapid tooling requires higher upfront investment but achieves lower unit cost as volume grows, rapid prototyping requires lower upfront investment but unit cost declines slowly, so total cost can rise quickly with quantity.
The Difference Between Rapid Tooling And Traditional Tooling
Purpose and scenario: Conventional tooling targets very long life and maximum stability for steady mass production. Rapid tooling targets fast design and process closure for prototypes and low-volume delivery.
Lead time: Conventional tooling often four to eight weeks. Rapid tooling from days to one or two weeks, complex programs in one to three weeks.
Upfront cost: Conventional tooling is higher due to hardened steels and full manufacturing steps. Rapid tooling is lower with aluminum or softer steels and simplified steps.
Lifetime and volume: Conventional tooling reaches hundreds of thousands of cycles, often beyond five thousand parts and up. Rapid tooling is commonly within a few thousand cycles, suitable for roughly fifty to five thousand parts.
Geometry and cooling: Rapid tooling more easily implements complex cavities and conformal cooling, improving cycle time. Conventional tooling excels under high load, long life, and tight dimensional control.
Materials and process: Conventional tooling uses hardened steels with robust thermal management and finishing. Rapid tooling uses aluminum, softer steels, or additive metals with essential but lean cooling and finishing.

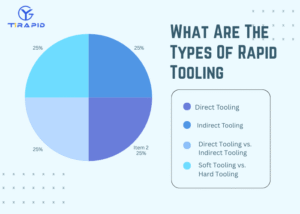

What Are The Types Of Rapid Tooling
Rapid tooling includes direct (CNC, 3D printing, metal) and indirect (silicone, vacuum, casting) methods. Direct suits 50–5,000 units with process validation, indirect fits 10–300 prototypes and aesthetics. Soft molds last tens to hundreds of shots, hard molds thousands. Choosing depends on cost, speed, and durability.
Direct Tooling
CNC Machining
Principle: Cutting aluminum or pre-hardened steels to form cores and cavities.
Best fit: Simple or large geometries, strong heat dissipation, stable dimensional control.
Materials and life: Aluminum and pre-hardened steels, typically thousands of cycles.
Additive Manufacturing
Principle: Layer-wise build of resin or metal to create inserts or compact molds, includes stereolithography, selective laser sintering, and metal laser sintering.
Best fit: Complex geometries, micro-features, conformal cooling.
Materials and life: High-temperature resins, nylon, metal powders, hundreds to over a thousand cycles after finishing.
Direct Metal Deposition
Principle: Laser with powder or wire builds near-net metal on a base, followed by finish machining.
Best fit: Rapid add-features and repairs, on-tool conformal channels or reinforcements.
Materials and life: Tool steels and cobalt- or nickel-based alloys, life depends on base and heat treatment.
Binder Jetting
Principle: Binder selectively joins powder to form a green body, then sintering and infiltration produce metal parts, also used for foundry sand molds.
Best fit: Casting patterns, sand molds, complex internal channels.
Materials and life: Sand, steel or copper-alloy powders, infiltration increases density and wear resistance.
Electroforming
Principle: Electrodeposition forms a precise metal shell on a master, later backed with support.
Best fit: High-gloss finishes, thin walls, sharp textures for cosmetic and precision parts.
Materials and life: Nickel, copper and alloys, life driven by thickness, backing, and load.
Indirect Tooling
Silicone molds
Principle: Cast silicone over a printed or machined master, use the cured mold to cast resins or low-temperature materials.
Best fit: Tens to hundreds of cosmetic, clear, or multi-durometer parts.
Material and life: Tear-resistant silicone, dozens to hundreds of pulls.
Vacuum casting
Principle: Pour polyurethane or similar materials into silicone molds under vacuum to eliminate bubbles and improve finish.
Best fit: Cosmetic and functional parts, snap-fits, color variants.
Material and life: ABS-like and PC-like systems, life similar to silicone molds.
Sand casting
Principle: Create sand molds from printed patterns, pour aluminum or ferrous alloys to form metal parts.
Best fit: Small to medium housings and structural components.
Material and life: Single-use sand molds, wide alloy selection.
Investment casting
Principle: Use wax or resin patterns to build ceramic shells, burn out patterns and pour metal for high-precision parts.
Best fit: Complex thin-wall metal parts for aerospace and medical.
Material and life: Stainless, nickel- and cobalt-based alloys, shells are single use.
3D-printed patterns for injection molding
Principle: Print wax or heat-resistant resin patterns to create metal tool components or short-run resin molds, then run limited injection trials.
Best fit: Gate location, shrinkage, and warpage trend studies with few parts.
Material and life: Heat-resistant resins and sacrificial wax, dozens to hundreds of shots.
Direct Tooling vs. Indirect Tooling
Decision keys
Planned volume:
About 50–5,000 parts with process data and takt targets: Direct.
10–300 cosmetic or transparent parts with color studies: Indirect.
Speed and iteration:
24–72 hours to get injection-capable inserts or an aluminum tool: Direct.
1–4 days to replicate tens to hundreds of show-ready parts: Indirect.
Material and thermal load:
High temperature or abrasive resins: Direct with aluminum or pre-hardened steel.
Low-temperature cast resins, clear or colored parts: Indirect with silicone molds or vacuum casting.
Geometry and cooling:
Conformal cooling and stable takt: Direct with metal additive or aluminum tools.
High-fidelity texture replication: Indirect with electroformed masters or high-grade silicone.
Budget shape:
Higher upfront than Indirect but sharply falling unit cost with volume: Direct.
Lowest entry and fastest replication but slower unit-cost decline: Indirect.
Typical use cases
Direct: engineering validation, bridge runs, pre-certification reliability lots, for example aluminum tools to lock gates and shrinkage on connector housings.
Indirect: design reviews, fit checks, color and clear parts for pilot sales, for example 100 vacuum-cast medical housings for market tests.
A staged path—Indirect to lock look-and-fit, then Direct to lock takt and yield—often halves total timeline and rework. When cumulative demand nears 200–500 parts, schedule Direct to avoid rising unit cost.
Soft Tooling vs. Hard Tooling
Materials and build
Soft tooling: silicone molds plus urethane/epoxy castables, masters often 3D-printed. Excellent detail, limited temperature and stiffness.
Hard tooling: aluminum and pre-hardened steel with optional surface hardening or plating, high thermal conductivity and rigidity.
Lifetime ranges (typical)
Soft tooling: roughly 20–100 pulls per mold, vacuum casting yields 10–100 parts per cavity.
Hard tooling: aluminum about 1,000–20,000 shots, pre-hardened steel 50,000–300,000 shots, resin and cooling dependent.
Cost structure
Soft tooling: low upfront, fast first article, unit cost declines slowly.
Hard tooling: higher upfront, unit cost drops steeply with volume.
Volume and lead time
Soft tooling: first articles in 1–4 days, best for 10–300 parts, cosmetics and fit checks.
Hard tooling: aluminum 3–10 days, steel 3–8 weeks, best for 500–50,000+ parts and certification lots.
What Is The Process Of Rapid Tooling
Rapid tooling aims for production-real processes on short timelines. A closed loop covers design, route selection, manufacturing, finishing, trials, and quality assurance—so you can ship stable small lots, collect process windows, and de-risk the move to aluminum or steel tools.
Design
Parting & ejection: favor straight pulls with ≥1° draft, add lifters, ejector plates, or air eject for complex areas.
Shrink & cooling: set resin-specific shrink (for example PA66 GF30 0.3–0.6%), enforce uniform walls and isometric cooling, remove hot spots via conformal channels or copper inserts.
Inserts: use replaceable inserts in wear or fine-detail regions.
Threads & fastening: use threaded inserts or post-tap, metal studs via heat staking for torque and life.
Process Route Selecting
Additive manufacturing: complex internals, conformal cooling, compact inserts, 24–72 hours to parts but needs finishing.
CNC: medium–large tools, high thermal conductivity, 2–10 days and stable takt.
Casting/electroforming: sand/investment for functional metals, electroforming for mirror cosmetics and textures.
Sheet metal: fixtures, locators, heat-spreading housings.
RIM: large, thick, low-stress clear parts.
Selector: balance geometry, thermal load, target life, deadline, and budget, choose indirect for cosmetic replication, direct for process data and takt.
How To Manufacture
Parameters: layer height and support for AM, feeds, tooling, and cooling for CNC.
Fixturing: one datum system across ops with dowel pins, aim to finish maximal faces per setup.
Toolpaths: high-MRR roughing, contour plus scallop finishing, secondary corner-cleaning tools.
Throughput: parallelize inserts, standard bases with custom inserts to cut wait time.
Post-Processing
Support removal & HIP: remove supports, optional hot isostatic pressing for density.
Heat treat/aging: aluminum T6, pre-hardened steel tempering for stability and hardness.
Surface spec: define by VDI or Ra, polish optics to mirror, bead-blast for uniform scatter.
Surface engineering: nitriding, hard chrome, electroless nickel, PVD for wear and release.
Trial And Validate
Windowing: design orthogonal trials on melt temp, mold temp, injection speed, pack, and cool, log size, warp, visuals.
Records: first-article report and SPC baselines, capture gate shear and shrink compensation.
Rework: easy-to-hard path, prioritize inserts over bulk cuts, address cooling before gate moves.
How To Assure Quality
Dimensions & GD&T: CMM or scan-to-CAD, target Cpk ≥1.33 on key features.
Traceability: lot, drying, MFI and moisture logs, retain samples.
Ramp: 10 → 50 → 200-part ramps to prove takt, yield, and packaging, then migrate to steel.
Deliverables: FAI, material certs, process sheets, and trial reports to support certification and mass-production kickoff.
What Are The Advantages And Disadvantages Of Rapid Tooling
Rapid tooling delivers production-real parts and data on short timelines—often 40–60% faster with lower upfront cost. It validates gates, cooling, shrinkage, and takt, and supports 10–5,000-piece bridge runs. Below are practical pros/cons, data points, and conversion-oriented tips.
Advantages
Faster time-to-market & lower development cost
Lead time: direct routes in 24–72h for inserts, 2–10 days for aluminum, indirect silicone/vacuum casting replicates tens to 100+ parts in 1–4 days.
Cost: standard bases + custom inserts, aluminum over steel, no-EDM strategies cut upfront 30–70%.
Practice: parallel insert machining and single-datum setups reduce trial rounds to 1–2.
Rapid validation of design/function and process parameters
Run production-grade resins to lock melt/mold temp, speed, pack, and cooling, capture gate shear, shrink compensation, and cycle time.
Build SPC baselines and FAI to surface warp/sink/weld issues early.
Flexible low-volume/multi-variant/high-complexity output
Cosmetics, colors, transparency: indirect excels.
Conformal cooling and micro features: metal AM or high-temp resin inserts.
Example: connector family via replaceable inserts, hour-level changeovers.
Precision/consistency and customization
With good cooling, aluminum tools hold IT13–14, key features often Cpk ≥1.33.
Modular tooling (replaceable inserts, localized coatings) speeds revisions and life management.
ROI advantage in the right volume window
Unit cost drops quickly with volume, in the 50–5,000 range, rapid tooling often wins TCO by avoiding heavy early capex and long waits.
Switch signal: when cumulative demand ≥200–500 and process is stable, evaluate migration to harder tools.
Disadvantages
Shorter life, temperature/abrasion limits (especially soft tools/low-temp resins)
Soft tools: ~10–100 parts/cavity, aluminum: ~1,000–20,000 shots, high-temp or GF resins shorten life.
Mitigation: design wear zones as replaceable inserts, nitriding/hard chrome/ENP where needed.
Higher unit or labor/press time versus high-volume steel tools
Soft-tool replication is fast but takt and unit labor can be higher, uneconomical beyond ~5k parts.
Mitigation: forecast scale and takt targets, switch to steel at threshold.
Limits in dimensional stability, thermal management, and surface ceiling
AM polymer inserts have temperature/stiffness limits, silicone molds drift with environment.
Mitigation: metal inserts or electroformed mirrors on critical faces, stronger cooling and mold-temp control.
Variation from multi-process chaining and finishing
Support removal, polishing, bead-blast differences, dimensional drift across mold copies.
Mitigation: standardize VDI/Ra, batch IDs, CMM sampling, inspect masters and track soft-tool life.
What Are The Precautions Of Rapid Tooling
To get “speed without surprises,” front-load DfM, match materials to processes, standardize metrology and finishes, and close the loop on cost and defects. The playbook below gives practical thresholds and tactics you can apply immediately to hit yield and takt within a 2–10-day lead time.
DfM Essentials
Parting & draft: lock parting line/ejection early, typical draft ≥1° (≥2° with texture).
Threads & fasteners: prefer metal inserts for plastics, keep tool threads to common standards for easy tooling.
Setups & toolpaths: single datum system, finish as much as possible in one setup, rough–finish with 0.1–0.2 mm stock.
Thermal path: shorten gates/runners, add conformal/near-channel cooling or high-conductivity inserts at thick zones.
Match Material & Process
Printed resin/metal inserts: great for low-temp, short cycles and complex waterlines.
Aluminum (6061/7075): 2–10-day delivery, ~1,000–20,000 shots, suits ABS/PC/PA without heavy glass fiber.
Pre-hardened steels (e.g., P20): for higher life or abrasive/glass-filled materials.
Process pairing: clear parts → aluminum/electroformed mirrors, GF nylons → steel or hardened aluminum/ENP, RIM/silicone → printed masters + silicone molds.
Plan dimensions & metrology
Datum system unified between design and fixturing.
FAI & SPC: 100% of critical dims at FAI, CMM/SPC on key features (target Cpk ≥1.33).
Large parts: start with scaled/section trials to learn shrink/warp before committing full size.
Define surfaces & standards
One spec source: assign VDI or mirror grades to cosmetics, Ra windows to functional faces, specify texture direction, parting line, witness marks.
Consistent finishing: fixed media/grit sequences, unify chamfers (C0.2–C0.5).
Verification: surface tester on seals/cosmetics, same fixtures per batch to cut variation.
Optimize cost
Thresholds: ≤300 pcs → silicone/vac cast, 200–1,000 → aluminum, >5,000 or life >50k shots → steel.
Cavitation: ramp 1→2–4 cavities after demand stabilizes, family molds for small parts.
Replaceables: wear/variant zones as inserts, common mother base + change cores for variants.
Defects & fixes
Warp: balance cooling, ribs at 0.5–0.7× wall, symmetric mold temp.
Sink: move/resize gate, extend/raise pack, hollow out thick walls with ribs.
Short shot: raise melt/mold temp & speed, bigger gate, fan or sub-gate.
Sticking: more draft, polish to spec, release agents/ejector aids.
Burn/air marks: add vents (0.02–0.04 mm), radius sharp corners, moderate end-of-fill speed.
EHS & compliance
Segregate scrap by resin, dispose coolant/plating per MSDS/regulations.
AM powders need ventilation, UV-cure SLA waste, PPE required.
Machine interlocks, ejector safety, high-temp/high-pressure SOP and LOTO.
When not to use rapid tooling
Very high volume: >50k/year or takt <20 s → steel and automation.
Extreme durability: high-temp/abrasive resins for long runs don’t suit soft tools.
Premium cosmetics: A-class mirror with long-term consistency → hard tools with stable cooling.
What Are The Application Of Rapid Tooling
Covers injection molding, thermoforming, compression, metal/jewelry casting, carbon-fiber layup, and sheet metal across automotive, aerospace, medical, and electronics. Low upfront cost and fast turnaround enable production-grade validation, ideal for ~10–5,000 units to speed iterations and pilot runs.
| Process Category | Typical Products/Parts | Recommended Tooling Path (Direct/Indirect, Materials) | Suitable Volume Range (pcs) | Key Advantages | Industry Examples |
| Injection Molding (standard) | Housings, snap-fits, structural parts | Direct tooling: aluminum molds, pre-hardened steel, metal AM inserts for complex cooling | 200–5,000 | Short lead time, production-grade materials, good dimensional stability | Automotive interiors, consumer electronics shells |
| Injection Molding (overmold/2-shot) | Soft–hard grips, seals | Direct tooling + split cavities: aluminum/steel, low-temperature channels for elastomers | 200–3,000 | One-piece assembly, improved feel and sealing | Medical handles, sporting goods |
| Insert Molding | Nut/shaft overmolds, terminals | Direct tooling: aluminum mold + insert jigs/fixtures | 100–3,000 | Strong fastening or conductivity, eliminates post-assembly | Connectors, drone brackets |
| Thermoforming (thin sheet) | Trays, guards, clear covers | Indirect tooling: CNC aluminum mold / aluminum copy from 3D-printed master | 50–2,000 | Simple tooling, high sheet utilization | Medical trays, packaging inlays |
| Compression Molding (thermoset/composites) | SMC parts, carbon-fiber components | Direct tooling: aluminum/steel, or Indirect: 3D-printed master + electroformed face | 100–2,000 | High fiber volume, strong mechanics | Aircraft interiors, racing parts |
| Casting (jewelry) | Rings, pendants, watch cases | Indirect tooling: 3D-printed wax/resin patterns → investment casting | 10–500 | Excellent detail, freeform geometry | Jewelry, luxury watches |
| Casting (general metals) | Small Al/SS components | Indirect tooling: sand/ceramic shells, 3D-printed patterns | 20–1,000 | Low cost, broad alloy options | Brackets, valve bodies |
| Carbon-fiber Layup Molds | Arms, shells, ducts | Indirect: 3D-printed master → silicone/aluminum copy, or Direct: CNC aluminum mold | 20–500 | Lightweight, high stiffness | Drone arms, body panels |
| Sheet-metal Forming (draw/bend) | Small-batch enclosures, brackets | Indirect: 3D-printed/aluminum soft punches, or Direct: simple CNC steel dies | 50–1,000 | Fast trials, low tooling investment | Chassis, fixture brackets |
FAQs
What Is Meant By Rapid Tooling?
I Define Rapid Tooling As Creating Production-Intent Molds, Dies, Or Inserts In Days Instead Of Weeks Using CNC, 3D Printing, Or Hybrid Routes. I Target Lead-Time Cuts Of 40–60%, Typical Turnaround 2–10 Days, And Tool Lifespans Of 300–5,000 Cycles (Material-Dependent). I Use Production-Grade Polymers/Metals To Validate Gates, Cooling, Shrinkage, And Cycle Time, then Run 10–5,000 Parts For Pilots. This Bridges Prototyping To Manufacturing While Reducing Upfront Cost By 30–70% Versus Conventional Hardened-Steel Tooling.
What Are The Classification Of Rapid Tooling?
I Classify Rapid Tooling By Path And Robustness. By Path: Direct (CNC/AM Tooling Inserts Used Immediately) And Indirect (Master Pattern → Silicone/Metal Copy). By Robustness: Soft (Silicone/Photopolymer, ≤100–500 Cycles) And Hard (Aluminum/Pre-Hardened Steel/Metal AM, 500–5,000+ Cycles). By Process: Injection, Thermoforming, Compression, Casting. I Select Based On Volume (10–5,000 Units), Temperature/Pressure, Surface Spec (VDI/Ra), And ROI Break-Even Versus Full Steel.
What Is The Difference Between Tooling And Manufacturing?
I Treat Tooling As The Creation Of Enablers—Molds, Dies, Jigs—With Specifications (Material, Cooling, Ejection) To Reproduce Geometry Within Tolerance (e.g., ±0.05–0.20 mm). Manufacturing Uses Those Tools To Convert Raw Material Into Parts At A Target Cycle Time (e.g., 18–45 s/shot), Yield (≥98%), And Cost/Unit. Tooling Is Capex, Long-Lived, And Sets Capability, Manufacturing Is Opex, Repetitive, And Delivers Volume. Optimizing Tool Design Can Cut Manufacturing Cost 10–25% Via Cycle And Scrap Reductions.
What Is The Purpose Of Rapid Tooling?
I Use Rapid Tooling To De-Risk Launches: Validate Design, Material, And Process Windows Using Production-Intent Methods Before Committing To Full Steel. Objectives Include Cutting Time-To-Market By 4–8 Weeks, Proving DfM (Parting, Draft, Wall, Ribs), Establishing Stable Cycle (±5%), And Running 10–5,000 Pilot Units For EVT/DVT, Certifications, Or Market Tests. It Also Enables Variant Exploration (A/B Gates, Cooling) And Early Costing, Often Lowering Upfront Investment By 30–70% Versus Conventional Tooling.
How Does Rapid Tooling Affect Production Speed?
I Accelerate Production By Combining Fast Tool Builds (2–10 Days) With Cycle-Time Optimization. Conformal Cooling Or Aluminum Inserts Can Reduce Cooling Time 20–50%, Cutting Overall Cycle 10–35%. Standard Mold Bases And Modular Inserts Trim Build Hours Another 15–25%. Net Effect: I Move From CAD Freeze To Shippable Pilots In 1–3 Weeks Instead Of 6–10, While Holding Cpk ≥1.33 On Critical Dimensions. This Pulls Revenue Forward And Shortens Payback, Often Achieving ROI Within The First 500–1,500 Parts.
Conclusion
Rapid tooling bridges prototyping and production via direct or indirect routes in days. Using production materials to validate gating, cooling, shrinkage, and cycle time cuts lead time 40–60%, ideal for 10–5,000 trial units. Success hinges on DfM, material fit, tool trials, and QA. Recognize limits in tool life and temperature, move to hardened steel for scale-up. Any specific needs or questions on rapid tooling?Welcome to message us sharing your idea！
