As the manufacturing industry continues to advance towards more complex structures and higher precision, the capabilities of machining equipment are increasingly becoming a crucial factor affecting product quality and production efficiency. CNC milling, as a core technology in the CNC machining system, has formed two typical machining modes based on the number of machine axes: 3-axis and 5-axis. These two technologies undertake different levels of manufacturing tasks in practical applications. Multi-axis machining technology is gradually expanding its application scope, especially demonstrating significant advantages in complex parts and high-end manufacturing. Meanwhile, 3-axis machining continues to maintain its mainstream position in many basic manufacturing scenarios, with its stability and cost advantages making it widely applicable.
3-Axis CNC Milling Technology

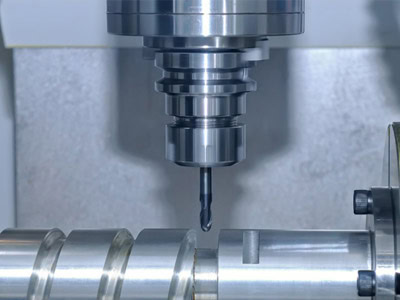

3-axis CNC milling is the most basic CNC machining method. Its tool moves linearly along the X, Y, and Z directions, while the workpiece is typically kept stationary during machining. The entire machining process is mainly based on simple path control, requiring multiple clamping operations according to different machining surfaces to gradually complete the part forming. In terms of processing principles, 3-axis machining emphasizes step-by-step processing and surface-by-surface treatment. Different angles are achieved by continuously adjusting the workpiece position. This method offers high stability for parts with simple structures.
常见类型
3-axis machining typically takes the form of vertical and horizontal machining centers, widely used in plane machining, simple contour machining, and hole machining.
These machines have relatively simple structures and intuitive operation, making them well-suited for manufacturing most basic parts.
优点和局限性
优点：
3-axis CNC milling offers advantages in cost and stability.
- 3-axis machining equipment requires lower investment, is easier to program, and operates relatively stably, making it suitable for mass production of simple parts.
- In production environments, its maintenance costs are low and its applicability is wide.
It holds an important position in most manufacturing enterprises.
限制：
Its limitations also determine its shortcomings in complex machining.
- Multiple clamping operations are required to complete multi-surface machining, which can easily lead to positioning errors.
- It is less efficient in machining complex curved surfaces.
These factors limit its application in high-end manufacturing.
5-Axis CNC Milling Technology

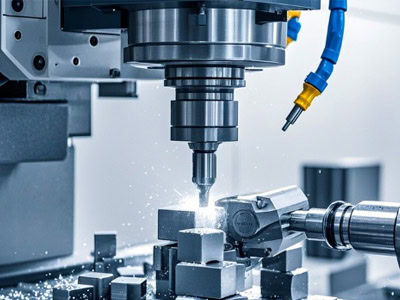

5-axis CNC milling adds two rotary axes to the three-axis system, allowing the tool or workpiece to participate in machining from multiple angles. The entire process emphasizes completing multi-face machining in a single setup, reducing repetitive positioning through continuous path control, thereby reducing error accumulation.In terms of machining principles, it focuses more on overall spatial path planning, ensuring the tool contacts the workpiece at the optimal angle, improving machining efficiency and accuracy.
常见类型
5-axis machining mainly includes rotary table and oscillating head types, with different types suitable for machining parts of varying complexity.
These machines can achieve multi-angle cutting, offering significant advantages in machining complex curved surfaces and high-precision parts.
优点和局限性
优点：
5-axis CNC milling offers advantages in accuracy and efficiency.
- 5-axis machining, through multi-axis linkage, can complete the machining of multiple surfaces in a single setup, thereby reducing error accumulation and improving overall accuracy.
- Its machining path is more flexible, effectively shortening the production cycle.
This improves machining efficiency.
限制：
However, the higher technical threshold also presents certain challenges in its use.
- The equipment cost is relatively high.
- The programming complexity is relatively high.
- The technical requirements for operators are higher.
These factors, to some extent, increase the investment and difficulty of use for enterprises.
The main differences between the two and how to choose:
The core difference between 3-axis and 5-axis machining lies in their machining capabilities and control methods.
- axis machining relies on three linear directions to complete cutting tasks, suitable for parts with simple structures, while 5-axis machining, by adding a rotary axis, achieves multi-angle machining, performing better in handling complex structures. At the same time, 5-axis machining can reduce the number of clamping operations, making the accuracy more stable, while 3-axis machining has a cost advantage in simple tasks.
These differences directly determine the application direction of the two technologies.
The choice of machining method needs to be judged based on actual needs.
- When the part structure is simple and the production scale is large, 3-axis machining is more economical;
- When dealing with complex curved surfaces or high-precision requirements, 5-axis machining can provide a more reliable solution.
In actual production, the two methods are often used in combination to achieve a balance between efficiency and cost.
Appropriate selection of machining methods can effectively improve overall manufacturing efficiency and quality performance.
结语
3-axis and 5-axis CNC milling technologies play different roles in modern manufacturing systems, forming a complementary relationship. 3-axis machining, with its cost advantages and ease of operation, maintains an important position in basic manufacturing, meeting the production needs of most standard parts. 5-axis machining, through its multi-axis linkage capabilities, demonstrates a higher level of machining capability in complex parts and high-precision manufacturing, making the machining process more efficient and stable. In practical applications, the choice of machining method needs to be analyzed in conjunction with specific production requirements. By rationally planning the machining process and equipment configuration, production efficiency can be optimized while ensuring product quality. As manufacturing technology continues to develop, the application scope of multi-axis machining will continue to expand, while basic machining methods will continue to play an important role in the industrial system, jointly driving the manufacturing industry to a higher level of development.
